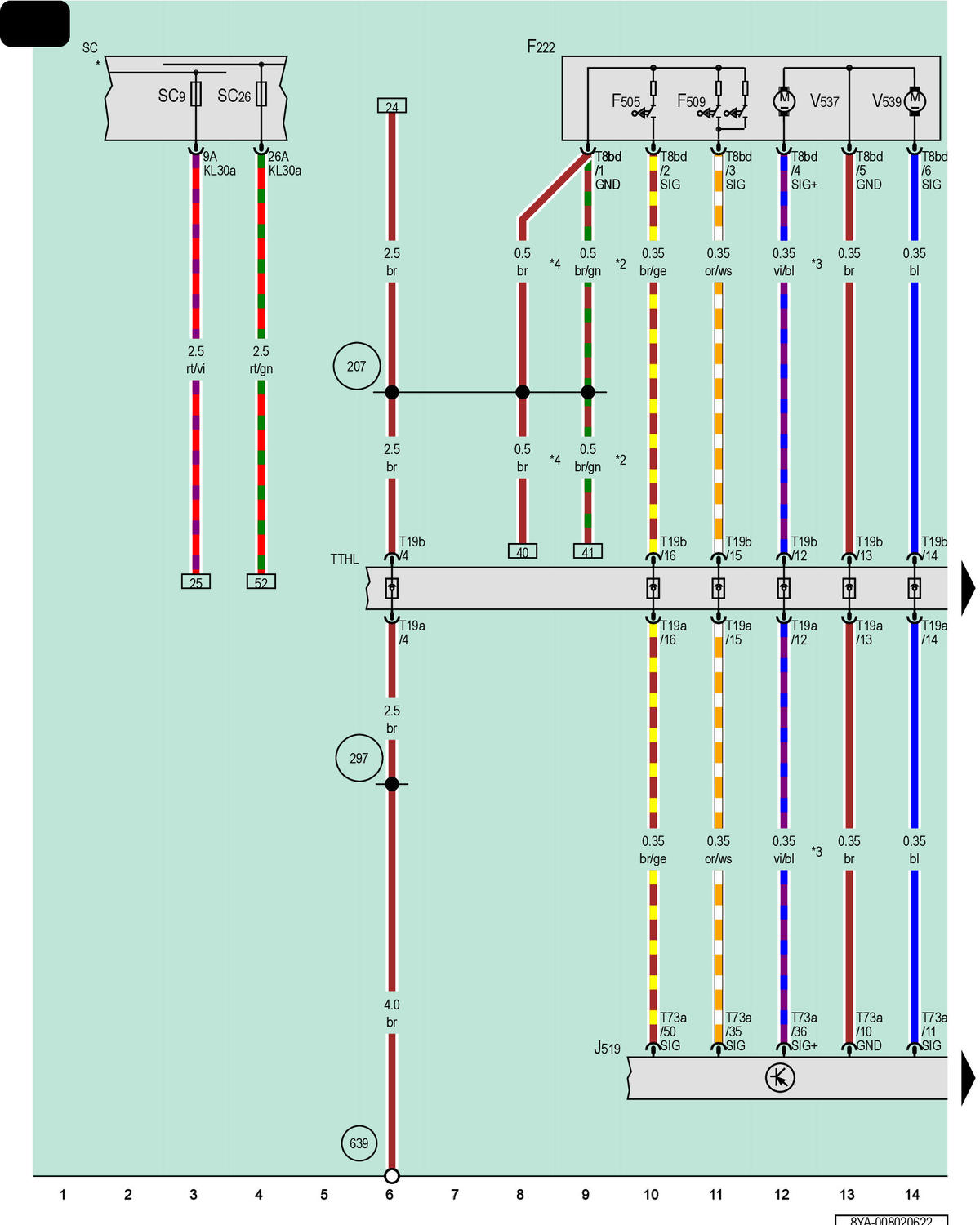

Left Rear Central Locking Lock Unit, Vehicle Electrical System Control Module, Fuse Panel C
F222
Left Rear Central Locking Lock Unit
F505
Driver Side Rear Door Contact Switch
F509
Driver Side Rear Central Locking System Actuator
J519
Vehicle Electrical System Control Module
SC
Fuse Panel C
SC9
Fuse 9 (On Fuse Panel C)
SC26
Fuse 26 (On Fuse Panel C)
T8bd
8-Pin Connector, Black
T19a
19-Pin Connector, Black
T19b
19-Pin Connector, Black
T73a
73-Pin Connector, Black
TTHL
Left Rear Door Coupling Point
V537
Driver Side Rear Door Central Locking -Safe- Motor
V539
Driver Side Rear Central Locking System Motor
207
Ground Connection (in Left Rear Door Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Through June 2021
*3
Different Wire Color Possible
*4
From June 2021
