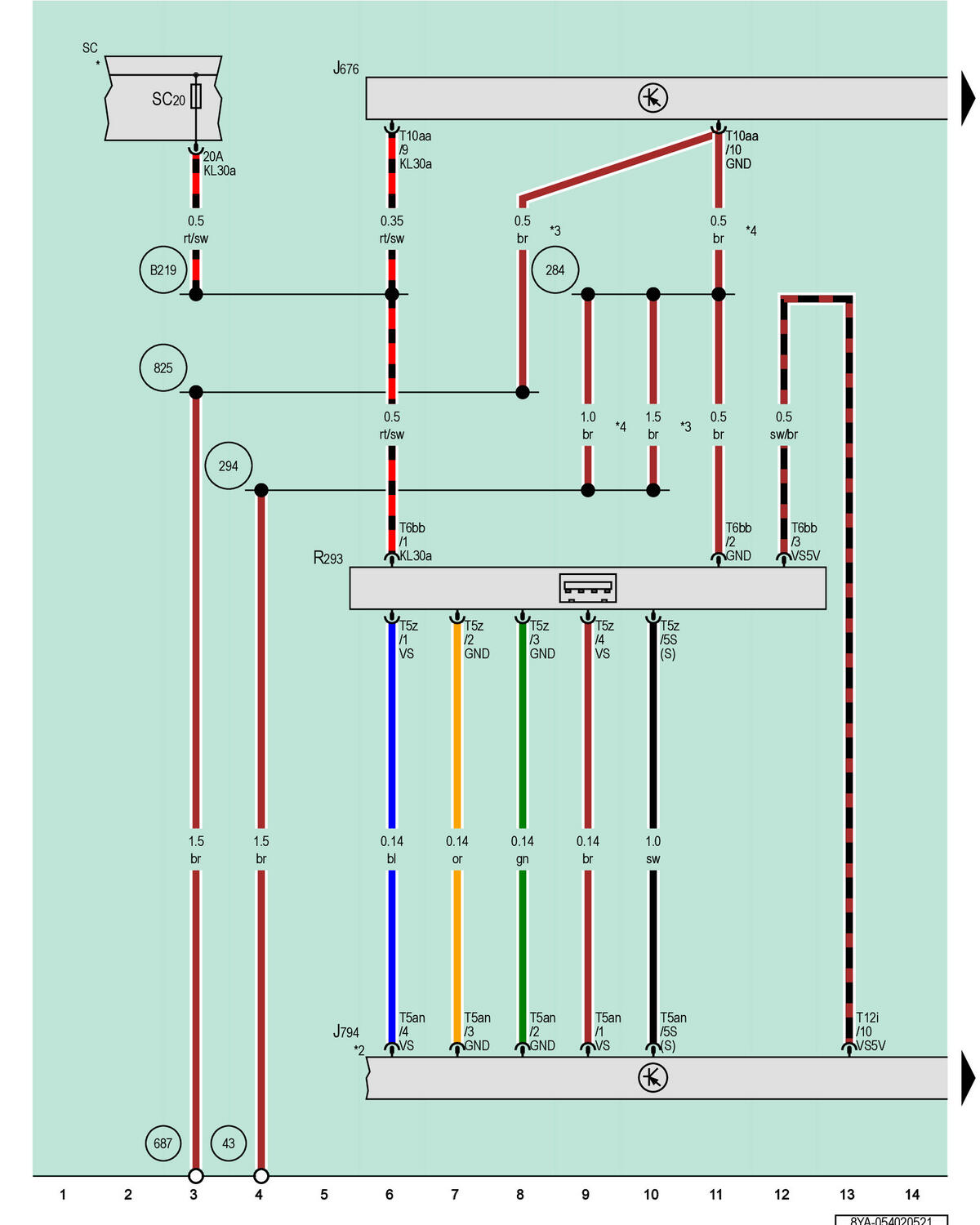

Chip Card Reader Control Module, Information Electronics Control Module 1, USB Distributor, Fuse Panel C
J676
Chip Card Reader Control Module
J794
Information Electronics Control Module 1
R293
USB Distributor
SC
Fuse Panel C
SC20
Fuse 20 (On Fuse Panel C)
T5an
5-Pin Connector, Brown
T5z
5-Pin Connector, Green
T6bb
6-Pin Connector, Black
T10aa
10-Pin Connector, Black
T12i
12-Pin Connector, Green
43
Ground Connection on A-Pillar, Lower Right
284
Ground Connection 6 (in Interior Wiring Harness)
294
Ground Connection 9 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
825
Ground Connection 18 (in Interior Wiring Harness)
B219
Positive Connection 4 (30a) (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*3
For RHD Vehicles
*4
For LHD Vehicles
