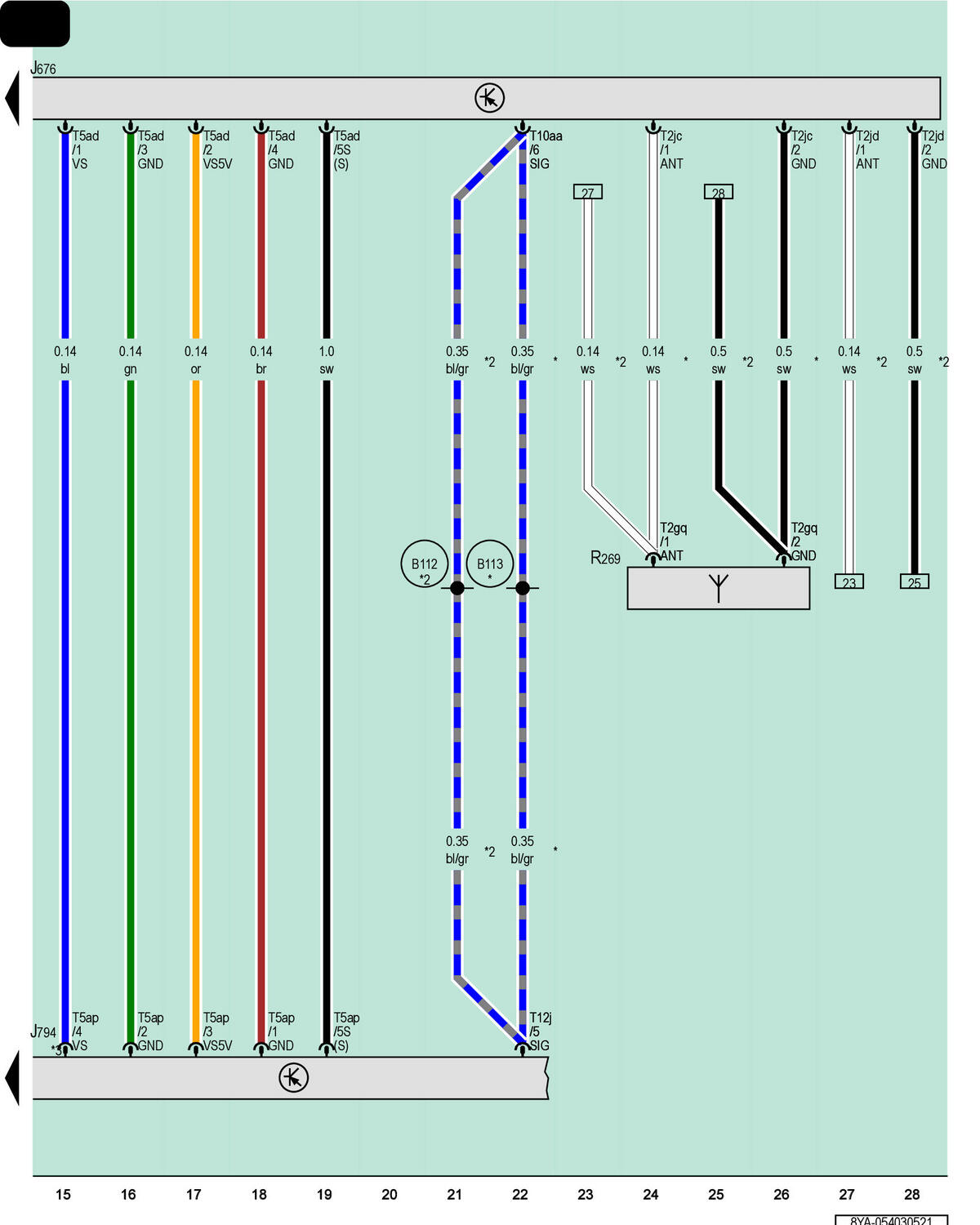

Chip Card Reader Control Module, Information Electronics Control Module 1, Near Field Communication Antenna

Courtesy of AUDI OF AMERICA, LLC

J676

Chip Card Reader Control Module

J794

Information Electronics Control Module 1

R269

Near Field Communication Antenna

T2gq

2-Pin Connector, Yellow

T2jc

2-Pin Connector, Yellow

T2jd

2-Pin Connector, Yellow

T5ad

5-Pin Connector, Brown

T5ap

5-Pin Connector, Blue

T10aa

10-Pin Connector, Black

T12j

12-Pin Connector, Gray

B112

Positive Connection (30a) (in Right Interior Wiring Harness)

B113

Positive Connection (30a) (in Left Interior Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles

*3

Refer to Applicable MMI (Information Electronics) Wiring Diagram
