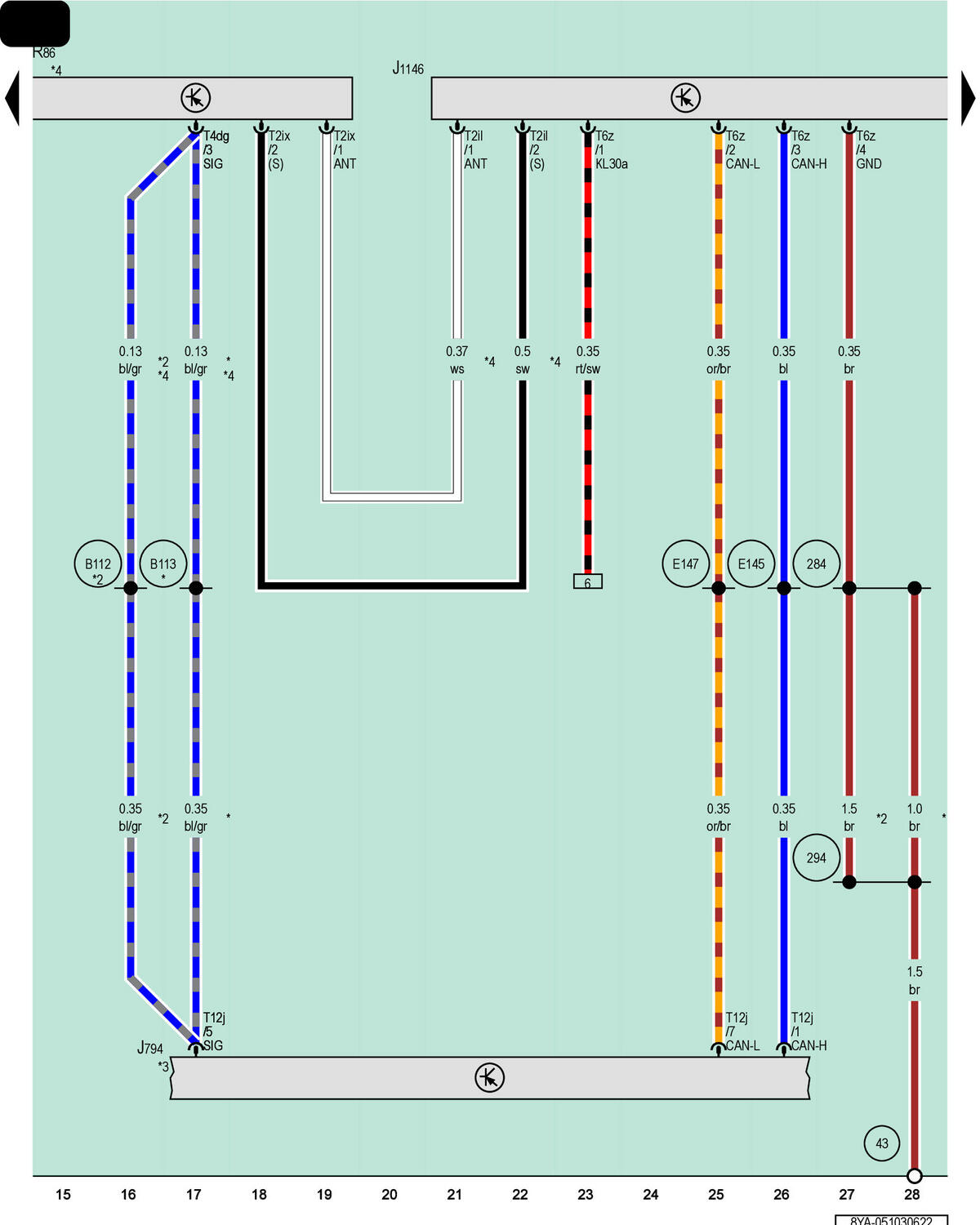

Information Electronics Control Module 1, Mobile Device Charger 1, Cellular Telephone Amplifier

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

J1146

Mobile Device Charger 1

R86

Cellular Telephone Amplifier

T2il

2-Pin Connector, Purple

T2ix

2-Pin Connector, Black

T4dg

4-Pin Connector, Black

T6z

6-Pin Connector, Black

T12j

12-Pin Connector, Gray

Ground Connection on A-Pillar, Lower Right

284

Ground Connection 6 (in Interior Wiring Harness)

294

Ground Connection 9 (in Interior Wiring Harness)

B112

Positive Connection (30a) (in Right Interior Wiring Harness)

B113

Positive Connection (30a) (in Left Interior Wiring Harness)

E145

Connection 1 (CAN Bus Information Electronics Control Module 1, High)

E147

Connection 1 (CAN Bus Information Electronics Control Module 1, Low)

For LHD Vehicles

For RHD Vehicles

Refer to Applicable MMI (Information Electronics) Wiring Diagram

For Vehicles with a Cell Phone Amplifier
