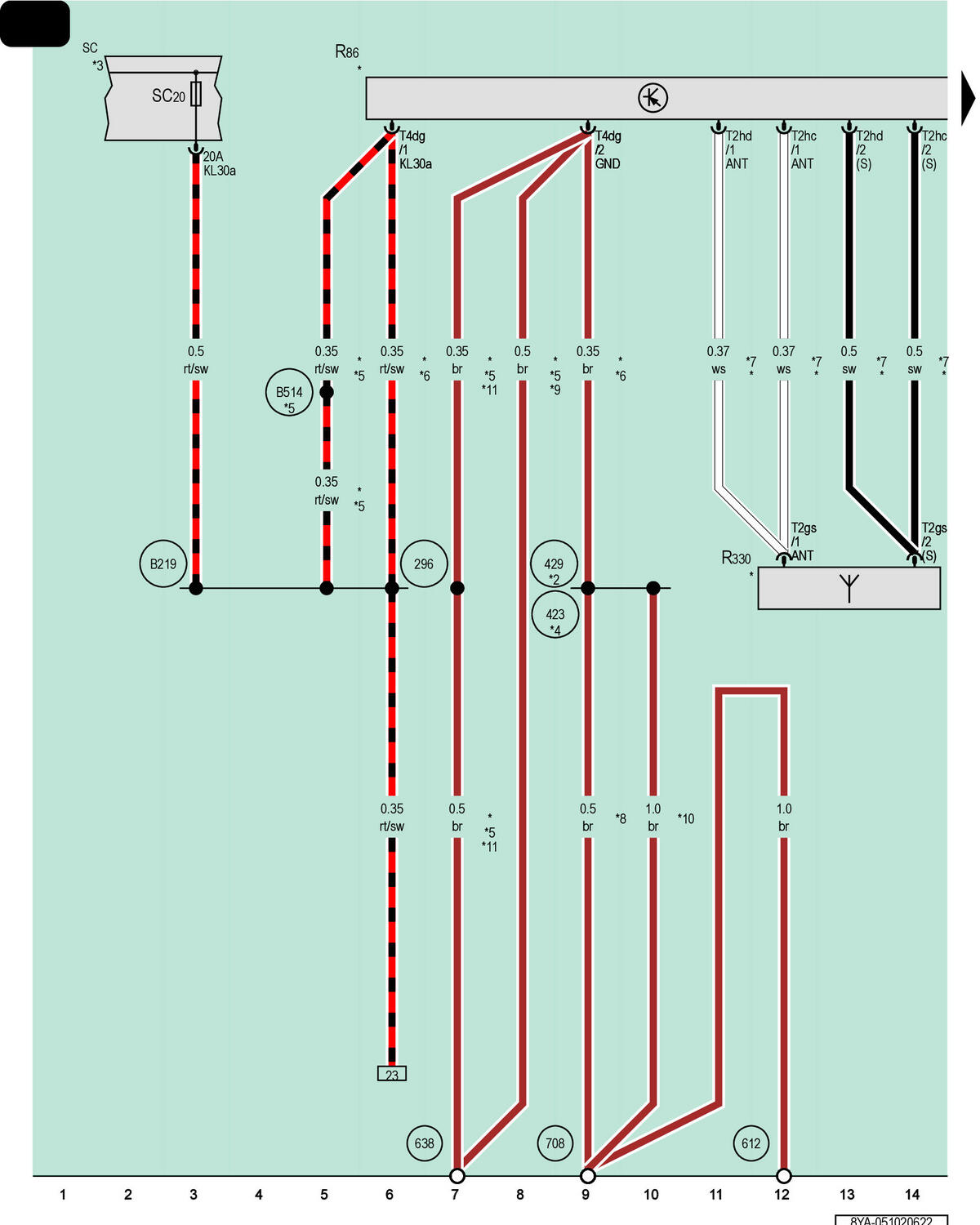

Cellular Telephone Amplifier, LTE Antenna 3, Fuse Panel C
R86
Cellular Telephone Amplifier
R330
LTE Antenna 3
SC
Fuse Panel C
SC20
Fuse 20 (On Fuse Panel C)
T2gs
2-Pin Connector, Purple
T2hc
2-Pin Connector, Purple
T2hd
2-Pin Connector, Naturally Cloudy
T4dg
4-Pin Connector, Black
296
Ground Connection 11 (in Interior Wiring Harness)
423
Ground Connection 1 (in Right Rear Wiring Harness)
429
Ground Connection 4 (in Right Rear Wiring Harness)
612
Ground Connection in Rear Lid, Center
638
Ground Connection on Right A-Pillar
708
Ground Connection 2 on Right Rear Chassis Side Member
B219
Positive Connection 4 (30a) (in Interior Wiring Harness)
B514
Positive Connection 10 (30a) (in Interior Wiring Harness)
*
For Vehicles with a Cell Phone Amplifier
*2
Sportback
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*4
Sedan
*5
For Vehicles with Top Sport Equipment
*6
For Vehicles Without Top Sport Equipment
*7
Depending on Equipment
*8
Through November 2021
*9
Through June 2022
*10
From November 2021
*11
From June 2022
