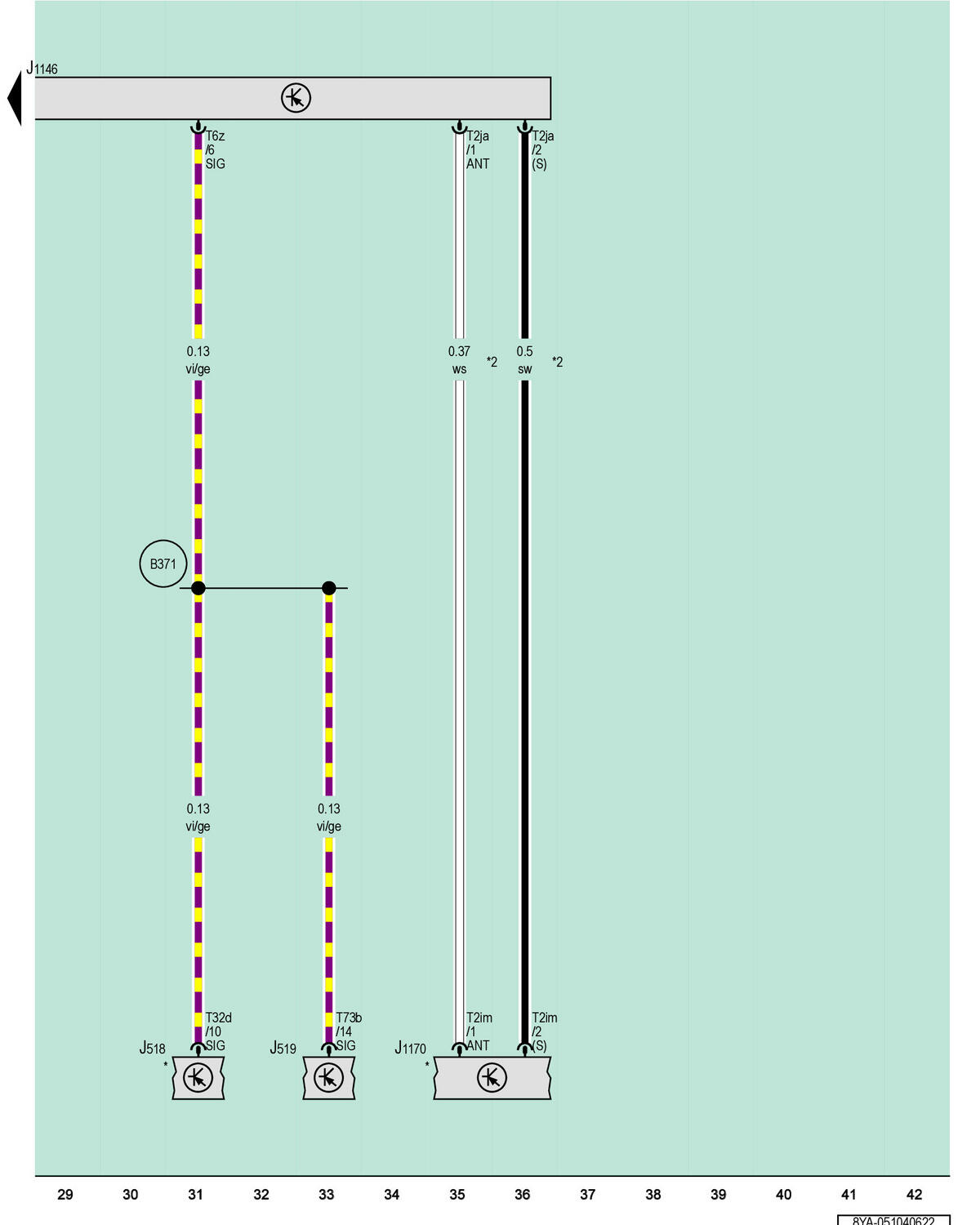

Access/Start Authorization Control Module, Vehicle Electrical System Control Module, Mobile Device Charger 1, Near Field Communication Control Module 2

Courtesy of AUDI OF AMERICA, LLC

J518

Access/Start Authorization Control Module

J519

Vehicle Electrical System Control Module

J1146

Mobile Device Charger 1

J1170

Near Field Communication Control Module 2

T2im

2-Pin Connector, Black

T2ja

2-Pin Connector, Black

T6z

6-Pin Connector, Black

T32d

32-Pin Connector, Gray

T73b

73-Pin Connector, Black

B371

Antenna Connection 1 (in Main Wiring Harness)

*

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*2

For Vehicles with Near Field Communication
