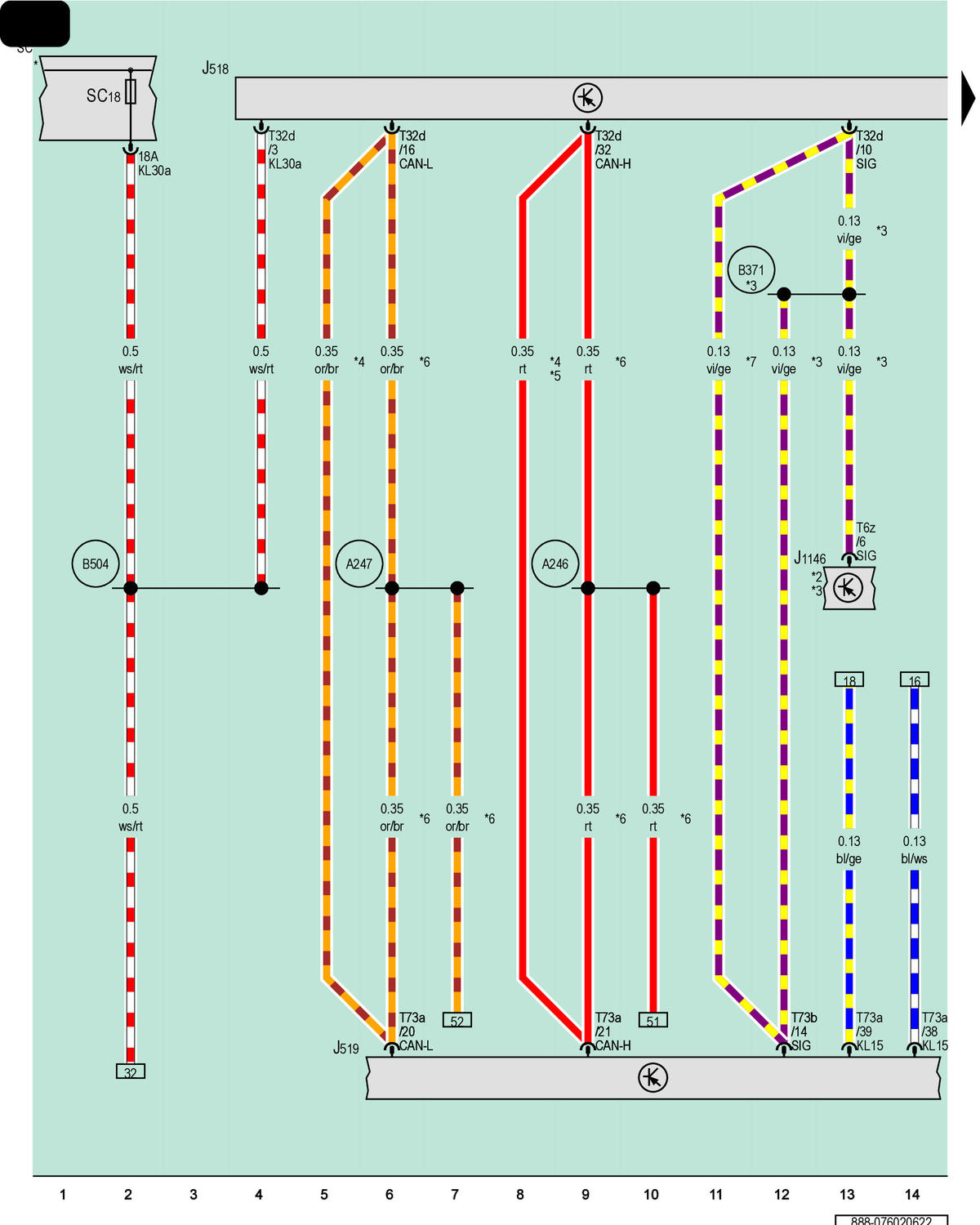

Access/Start Authorization Control Module, Vehicle Electrical System Control Module, Mobile Device Charger 1, Fuse Panel C
J518
Access/Start Authorization Control Module
J519
Vehicle Electrical System Control Module
J1146
Mobile Device Charger 1
SC
Fuse Panel C
SC18
Fuse 18 (On Fuse Panel C)
T6z
6-Pin Connector, Black
T32d
32-Pin Connector, Gray
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
A246
CAN Bus High Connection 1 (in Engine/Motor Compartment Wiring Harness)
A247
CAN Bus Low Connection 1 (in Engine/Motor Compartment Wiring Harness)
B371
Antenna Connection 1 (in Main Wiring Harness)
B504
Positive Connection 8 (30a) (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to the Applicable Cell Phone System Wiring Diagram
*3
For Vehicles with Wireless Cell Phone Charger
*4
For Vehicles with High Line Headlamps
*5
The Color of the Wires Depends on Vehicle Equipment
*6
For Vehicles with Low Line Headlamps
*7
For Vehicles Without Wireless Cell Phone Charger
