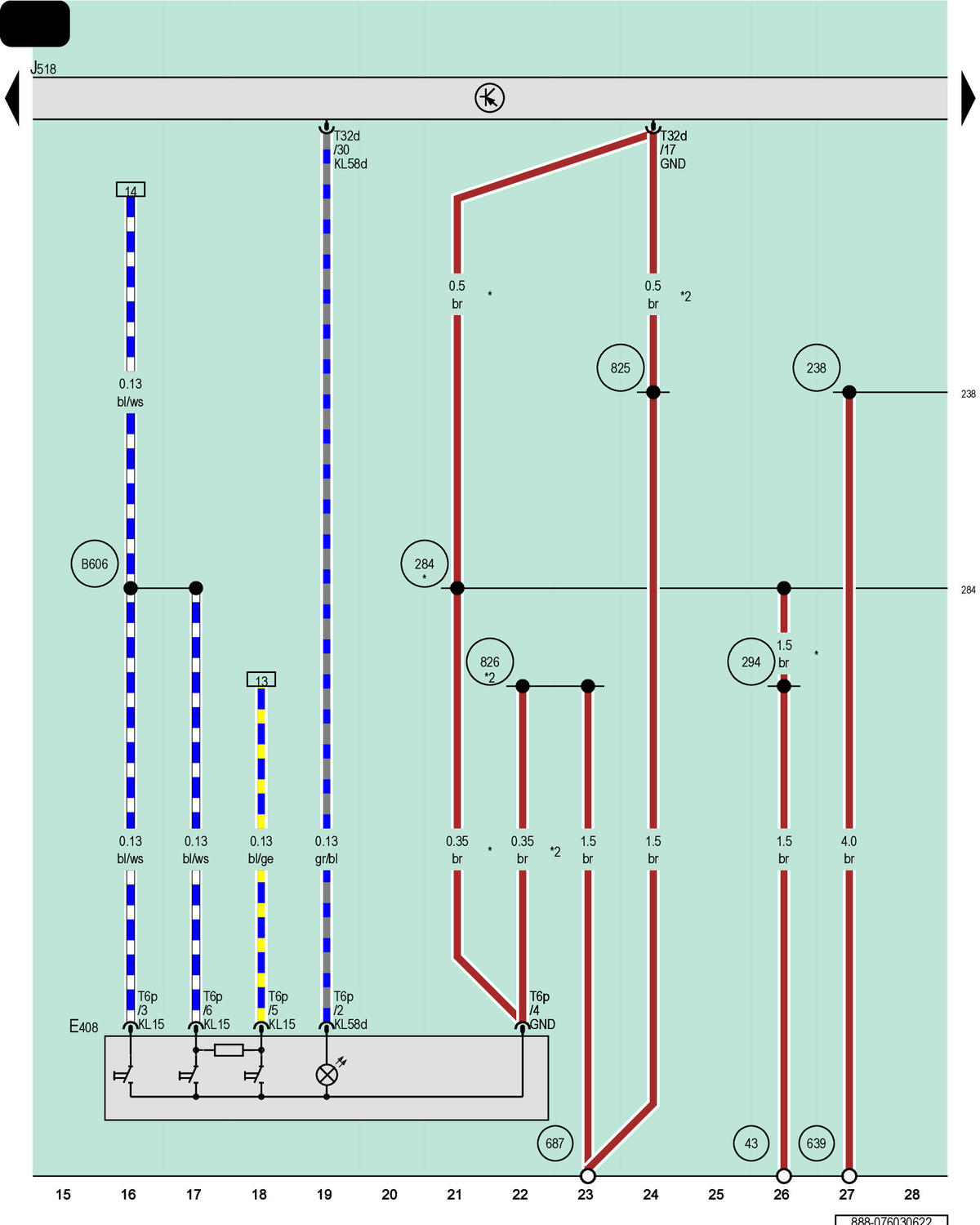

Access/Start Authorization Button, Access/Start Authorization Control Module

Courtesy of AUDI OF AMERICA, LLC

E408

Access/Start Authorization Button

J518

Access/Start Authorization Control Module

T6p

6-Pin Connector, Black

T32d

32-Pin Connector, Gray

43

Ground Connection on A-Pillar, Lower Right

238

Ground Connection 1 (in Interior Wiring Harness)

284

Ground Connection 6 (in Interior Wiring Harness)

294

Ground Connection 9 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

687

Ground Connection 1 on Center Tunnel

825

Ground Connection 18 (in Interior Wiring Harness)

826

Ground Connection 19 (in Interior Wiring Harness)

B606

Connection 2 (in Interior Wiring Harness)

*

For RHD Vehicles

*2

For LHD Vehicles
