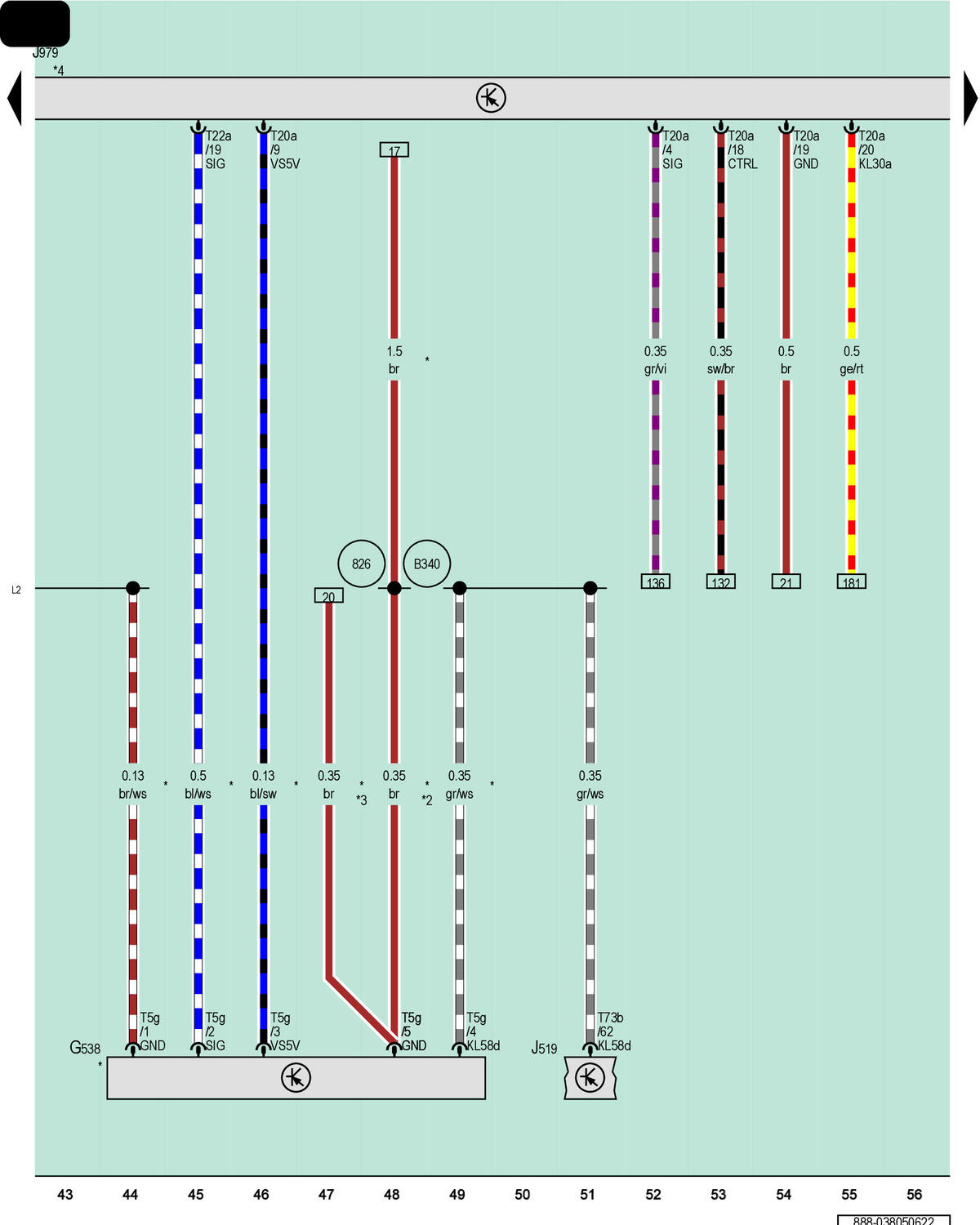

Rear Temperature Selection Potentiometer, Vehicle Electrical System Control Module, Heating And Air Conditioning Control Module

Courtesy of AUDI OF AMERICA, LLC

G538

Rear Temperature Selection Potentiometer

J519

Vehicle Electrical System Control Module

J979

Heating and Air Conditioning Control Module

T5g

5-Pin Connector, Black

T20a

20-Pin Connector, Black

T22a

22-Pin Connector, Black

T73b

73-Pin Connector, Black

826

Ground Connection 19 (in Interior Wiring Harness)

B340

Connection 58d (in Main Wiring Harness) 1

L2

Connection (in A/C System Wiring Harness)

*

Depending on Equipment

*2

Through April 2020

*3

From April 2020

*4

Refer to the Applicable Heated Seats Wiring Diagram
