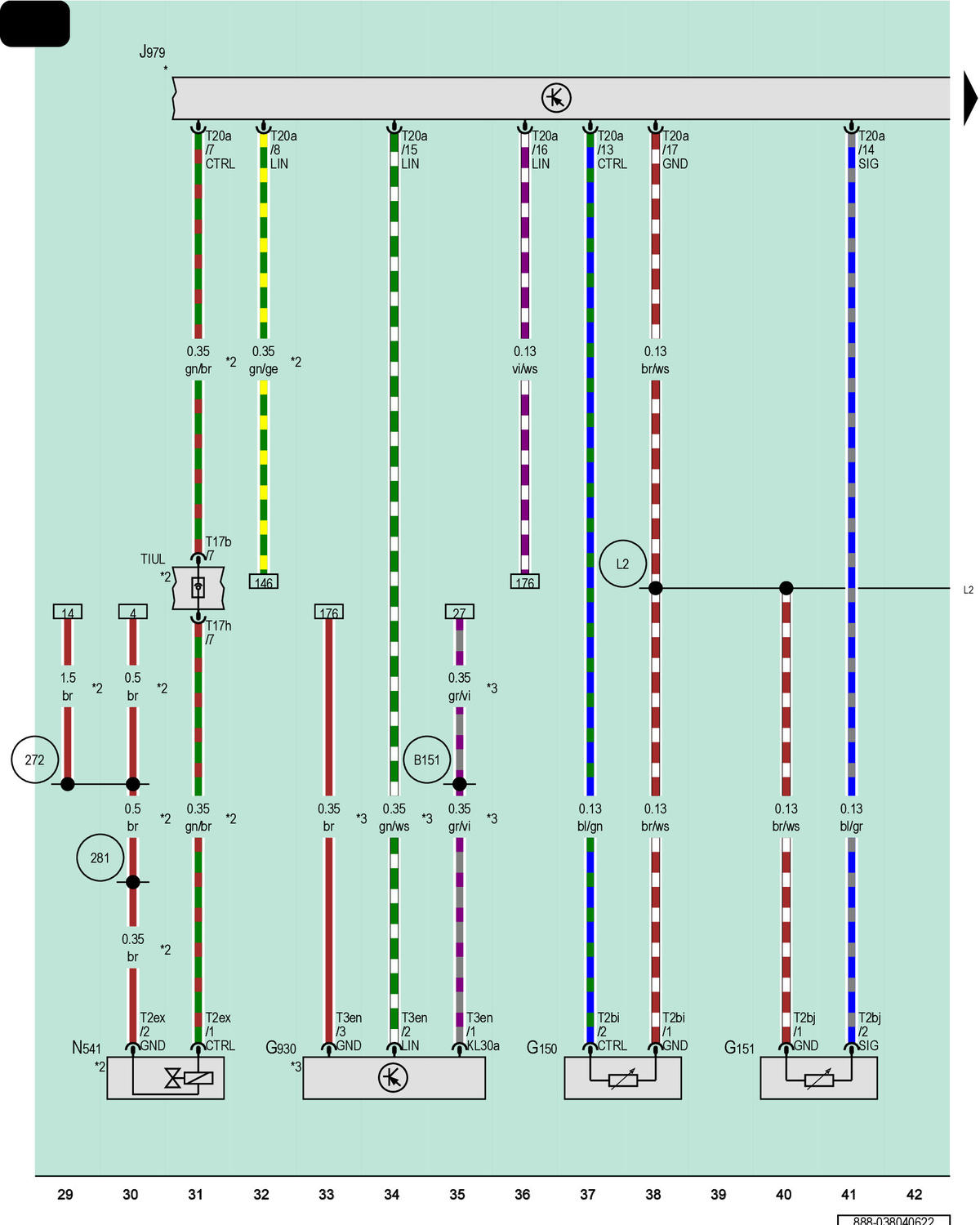

Left Vent Temperature Sensor, Right Vent Temperature Sensor, A/C System Particulate Matter Concentration Sensor, Heating And Air Conditioning Control Module, Heater And A/C Unit Refrigerant Shut-Off Valve
G150
Left Vent Temperature Sensor
G151
Right Vent Temperature Sensor
G930
A/C System Particulate Matter Concentration Sensor
J979
Heating and Air Conditioning Control Module
N541
Heater and A/C Unit Refrigerant Shut-Off Valve
T2bi
2-Pin Connector, Black
T2bj
2-Pin Connector, Black
T2ex
2-Pin Connector, Black
T3en
3-Pin Connector, Black
T17b
17-Pin Connector, Black
T17h
17-Pin Connector, Black
T20a
20-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
272
Ground Connection 4 (in Front Wiring Harness)
281
Ground Connection 1 (in Engine Pre-Wiring Harness)
B151
Positive Connection 3 (30a) (in Interior Wiring Harness)
L2
Connection (in A/C System Wiring Harness)
*
Refer to the Applicable Heated Seats Wiring Diagram
*2
For Vehicles with Hybrid Drive
*3
For Vehicles with China Equipment
