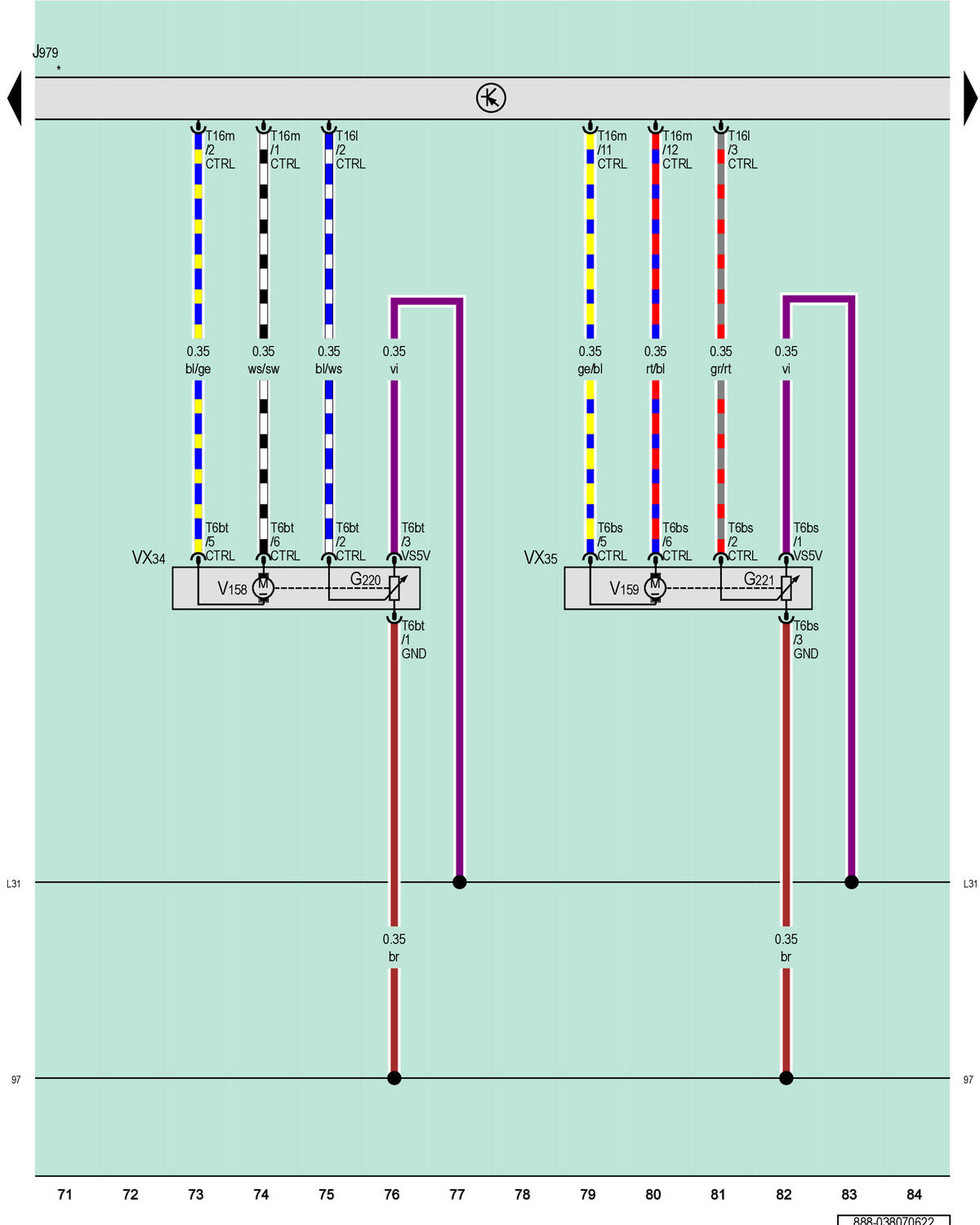

Heating And Air Conditioning Control Module, Left Front Temperature Control Door, Right Front Temperature Control Door

Courtesy of AUDI OF AMERICA, LLC

G220

Left Temperature Control Door Motor Position Sensor

G221

Right Temperature Control Door Motor Position Sensor

J979

Heating and Air Conditioning Control Module

T6bs

6-Pin Connector, Blue

T6bt

6-Pin Connector, Blue

T16l

16-Pin Connector, Black

T16m

16-Pin Connector, Brown

VX34

Left Front Temperature Control Door

VX35

Right Front Temperature Control Door

V158

Left Temperature Control Door Motor

V159

Right Temperature Control Door Motor

97

Ground Connection 1 (in A/C Wiring Harness)

L31

Connection (5 Volt) (in A/C System Wiring Harness)

*

Refer to the Applicable Heated Seats Wiring Diagram
