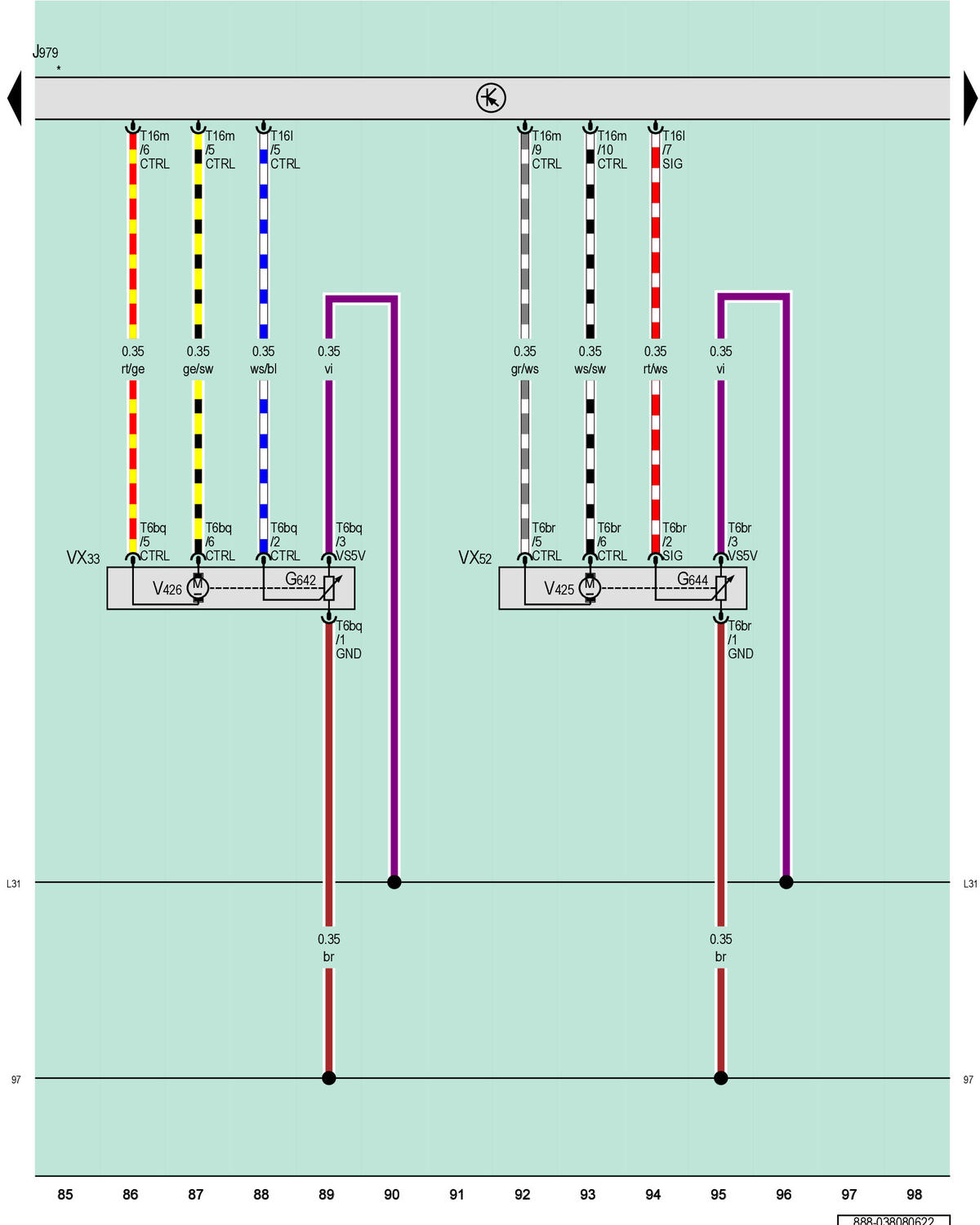

Heating And Air Conditioning Control Module, Air Distribution Door, Air RECIRCULATION Door

Courtesy of AUDI OF AMERICA, LLC

G642

Front Air Distribution Door Motor Position Sensor

G644

Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor

J979

Heating and Air Conditioning Control Module

T6bq

6-Pin Connector, Blue

T6br

6-Pin Connector, Blue

T16l

16-Pin Connector, Black

T16m

16-Pin Connector, Brown

VX33

Air Distribution Door

VX52

Air Recirculation Door

V425

Fresh Air/Recirculating Air/Back Pressure Door Motor

V426

Front Air Distribution Door Motor

97

Ground Connection 1 (in A/C Wiring Harness)

L31

Connection (5 Volt) (in A/C System Wiring Harness)

*

Refer to the Applicable Heated Seats Wiring Diagram
