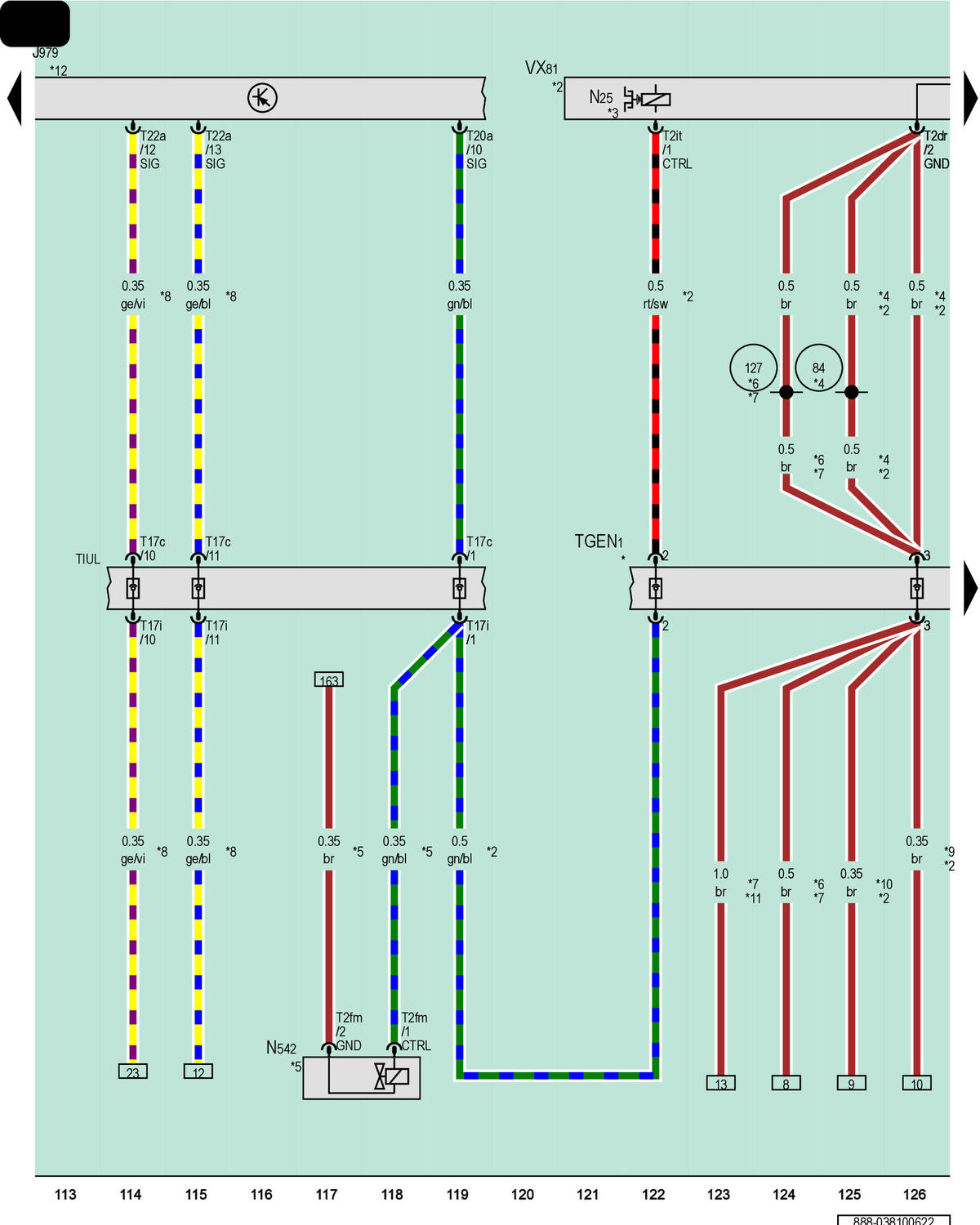

Heating And Air Conditioning Control Module, A/C Compressor
J979
Heating and Air Conditioning Control Module
N25
A/C Clutch
N542
High-Voltage Battery Heater Core Refrigerant Shut-Off Valve
T2dr
2-Pin Connector, Black
T2fm
2-Pin Connector, Black
T2it
2-Pin Connector, Brown
T17c
17-Pin Connector, Brown
T17i
17-Pin Connector, Brown
T20a
20-Pin Connector, Black
T22a
22-Pin Connector, Black
TGEN1
Generator Coupling Point 1
TIUL
Coupling Point in Interior, Bottom Left
VX81
A/C Compressor
84
Engine Block Ground Connection (in Right Front Wiring Harness)
127
Ground Connection 1 (in A/C Compressor Wiring Harness)
*
Refer to Applicable Engine Wiring Diagram
*2
For Vehicles Without Hybrid Drive
*3
Pre-Wired Component
*4
Depending on Equipment
*5
For Vehicles with Hybrid Drive
*6
For LEV3/Tier 3 70 Emissions Standard
*7
From June 2021
*8
For Vehicles with Auxiliary Heater
*9
Through April 2020
*10
From April 2020
*11
For Vehicles with 2.5L Gasoline Engine
*12
Refer to the Applicable Heated Seats Wiring Diagram
