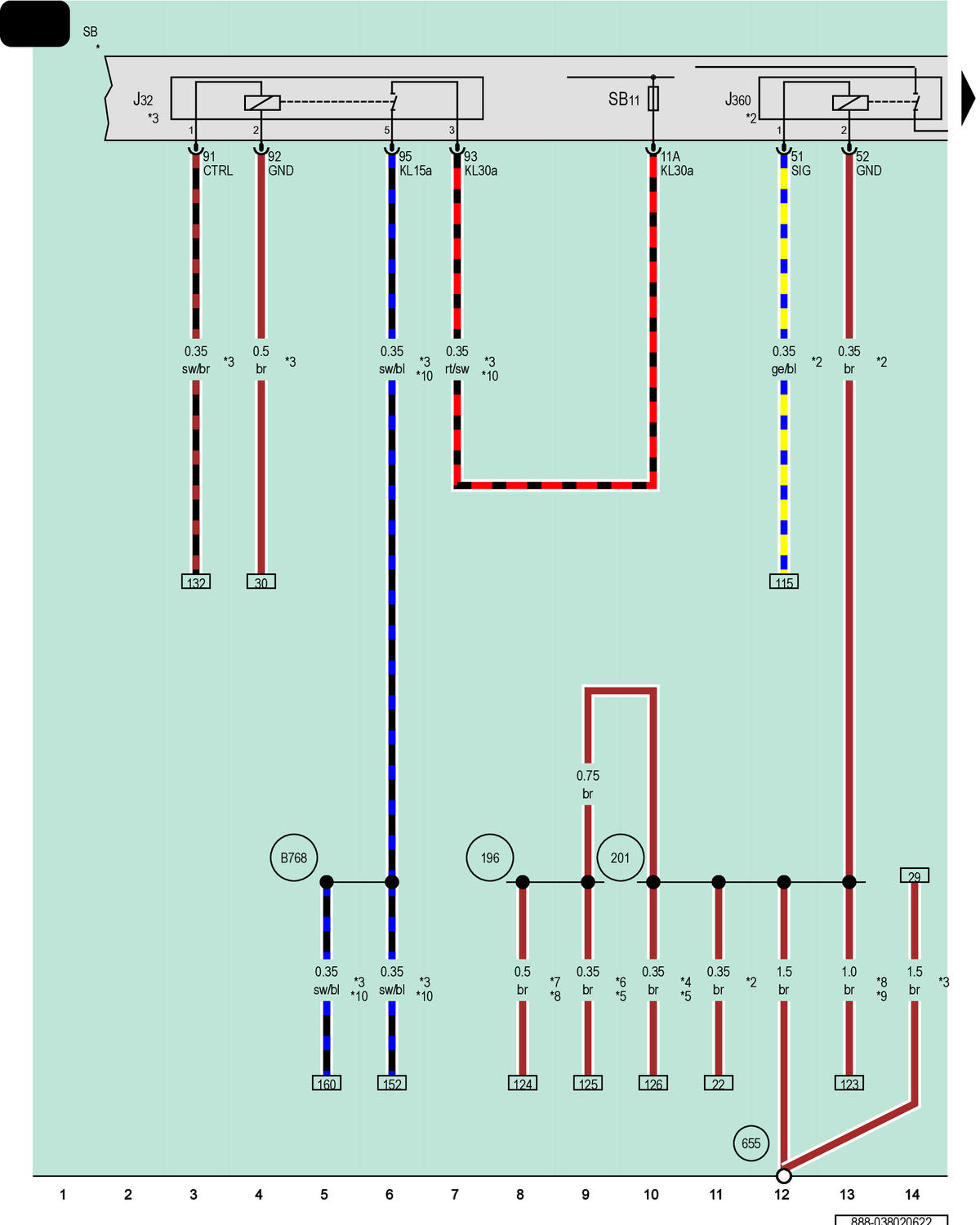

Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

J32

A/C Relay

J360

High Heat Output Relay

SB

Fuse Panel B

SB11

Fuse 11 (On Fuse Panel B)

196

Ground Connection 3 (in Rear Wiring Harness)

201

Ground Connection 5 (in Engine/Motor Compartment Wiring Harness)

655

Ground Connection on Left Headlamp

B768

Connection 15a (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

For Vehicles with Auxiliary Heater

*3

For Vehicles with Hybrid Drive

*4

Through April 2020

*5

For Vehicles Without Hybrid Drive

*6

From April 2020

*7

For LEV3/Tier 3 70 Emissions Standard

*8

From June 2021

*9

For Vehicles with 2.5L Gasoline Engine

*10

Diameter Depends on Equipment
