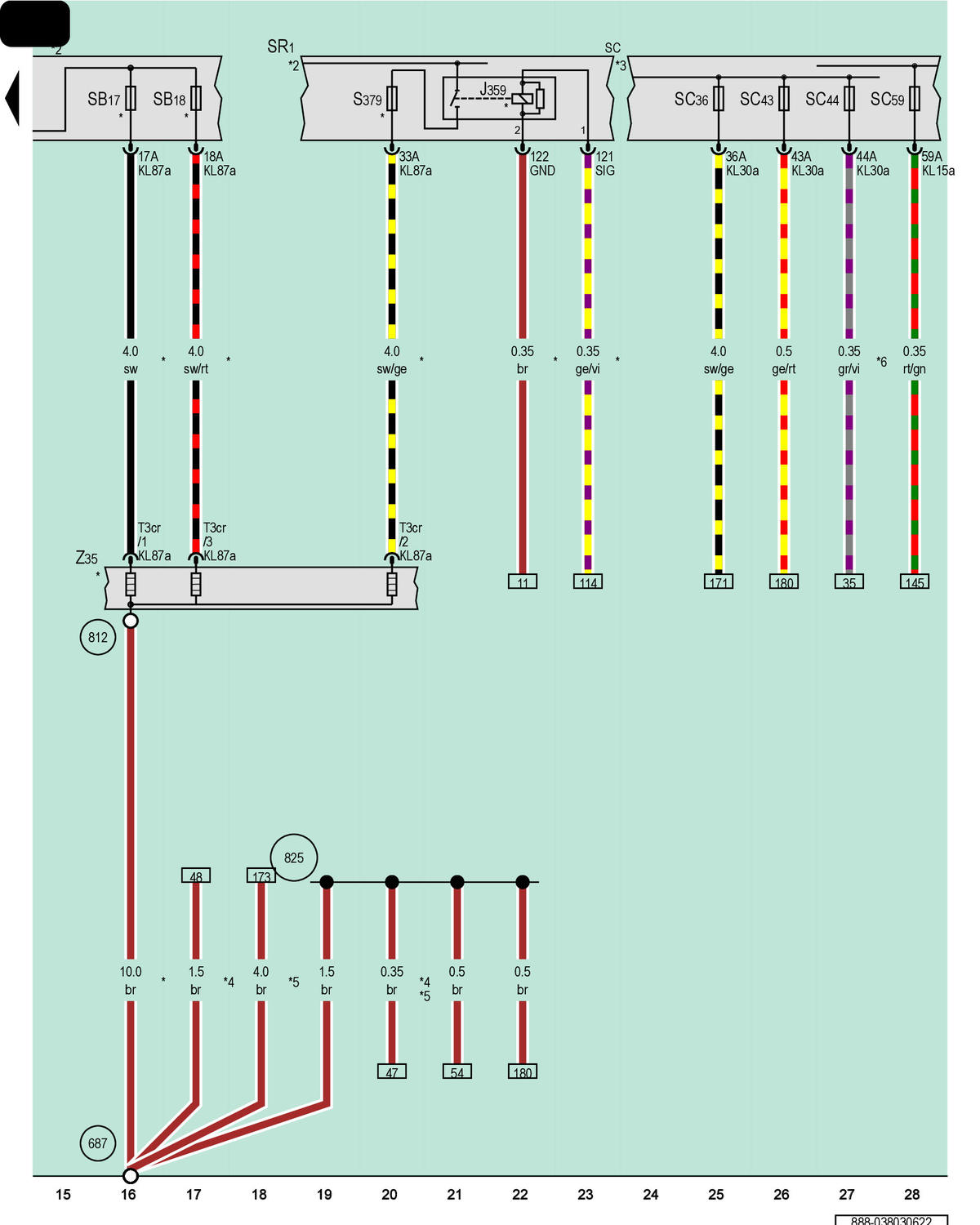

Fuse Panel B, Fuse Panel C, Relay And Fuse Panel 1, Auxiliary Heater Heating Element, Ground Connection On Auxiliary Heater Heating Element

Courtesy of AUDI OF AMERICA, LLC

J359

Low Heat Output Relay

SB

Fuse Panel B

SC

Fuse Panel C

SR1

Relay and Fuse Panel 1

SB17

Fuse 17 (On Fuse Panel B)

SB18

Fuse 18 (On Fuse Panel B)

SC36

Fuse 36 (On Fuse Panel C)

SC43

Fuse 43 (On Fuse Panel C)

SC44

Fuse 44 (On Fuse Panel C)

SC59

Fuse 59 (On Fuse Panel C)

S379

Auxiliary Heater Fuse

T3cr

3-Pin Connector, Black

Z35

Auxiliary Heater Heating Element

687

Ground Connection 1 on Center Tunnel

812

Ground Connection on Auxiliary Heater Heating Element

825

Ground Connection 18 (in Interior Wiring Harness)

*

For Vehicles with Auxiliary Heater

*2

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*3

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*4

Depending on Equipment

*5

From April 2020

*6

For Vehicles with China Equipment
