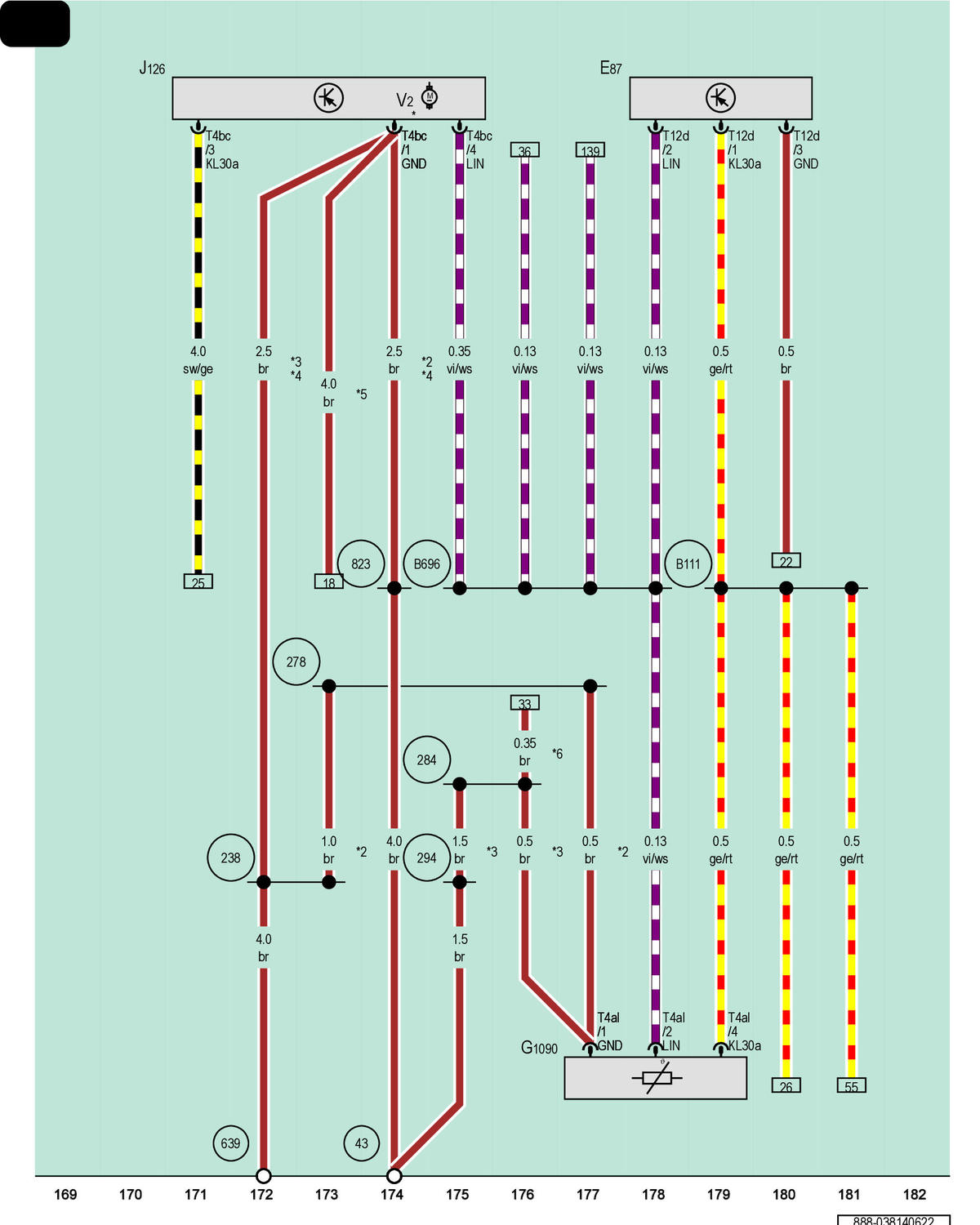

Front A/C Display Control Head, Vehicle Interior Temperature Sensor, Fresh Air Blower Control Module

Courtesy of AUDI OF AMERICA, LLC

E87

Front A/C Display Control Head

G1090

Vehicle Interior Temperature Sensor

J126

Fresh Air Blower Control Module

T4al

4-Pin Connector, Black

T4bc

4-Pin Connector, Black

T12d

12-Pin Connector, Black

V2

Fresh Air Blower

43

Ground Connection on A-Pillar, Lower Right

238

Ground Connection 1 (in Interior Wiring Harness)

278

Ground Connection 4 (in Interior Wiring Harness)

284

Ground Connection 6 (in Interior Wiring Harness)

294

Ground Connection 9 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

823

Ground Connection 16 (in Interior Wiring Harness)

B111

Positive Connection 1 (30a) (in Interior Wiring Harness)

B696

A/C System Connection 1 (in Main Wiring Harness)

*

Pre-Wired Component

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

Through April 2020

*5

From April 2020

*6

For Vehicles with China Equipment
