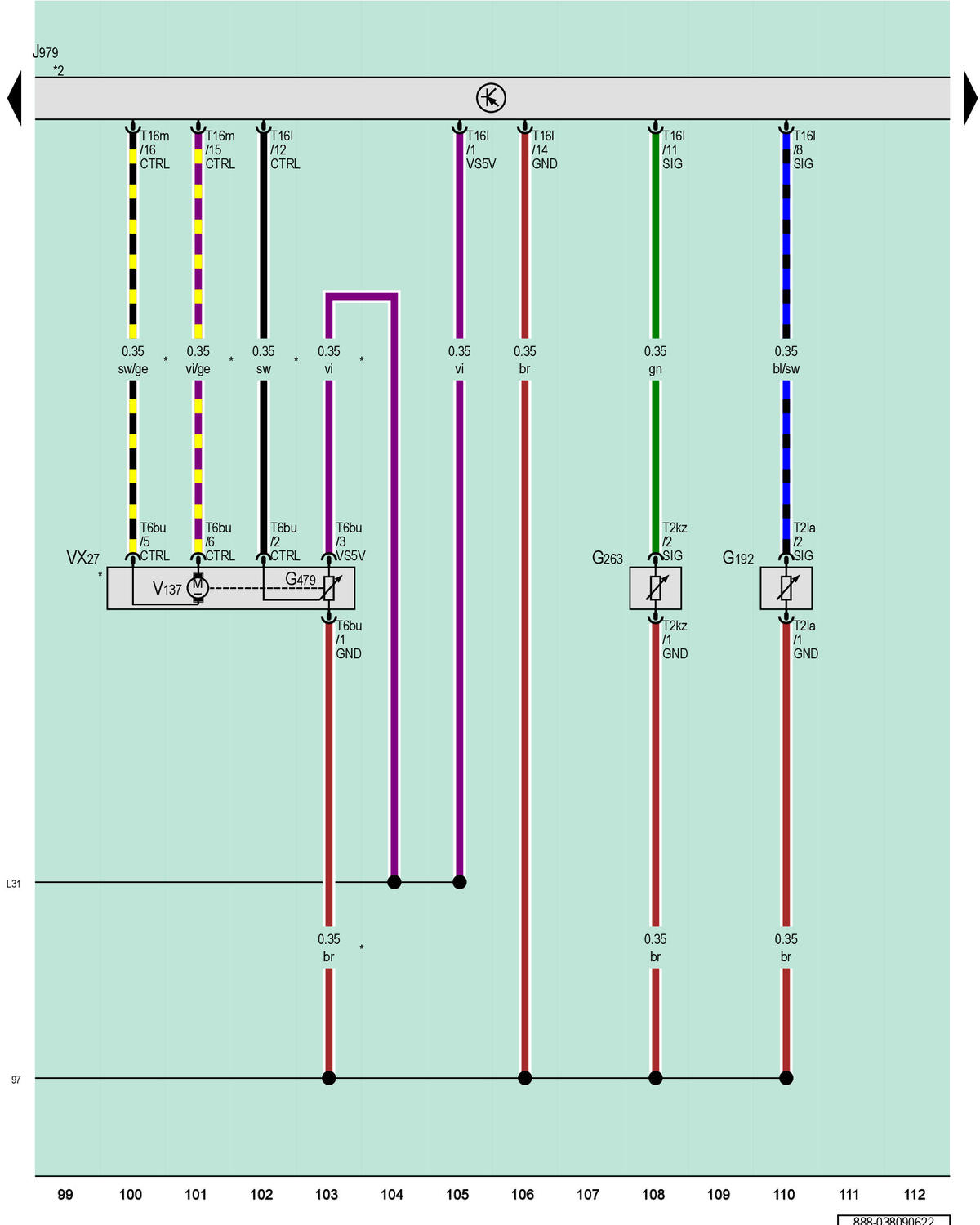

FOOTWELL Vent Temperature Sensor, Evaporator Vent Temperature Sensor, Heating And Air Conditioning Control Module, Temperature Control Door

Courtesy of AUDI OF AMERICA, LLC

G192

Footwell Vent Temperature Sensor

G263

Evaporator Vent Temperature Sensor

G479

Rear Temperature Control Door Motor Position Sensor

J979

Heating and Air Conditioning Control Module

T2kz

2-Pin Connector, Black

T2la

2-Pin Connector, Black

T6bu

6-Pin Connector, Blue

T16l

16-Pin Connector, Black

T16m

16-Pin Connector, Brown

VX27

Temperature Control Door

V137

Rear Temperature Control Door Motor

97

Ground Connection 1 (in A/C Wiring Harness)

L31

Connection (5 Volt) (in A/C System Wiring Harness)

*

Depending on Equipment

*2

Refer to the Applicable Heated Seats Wiring Diagram
