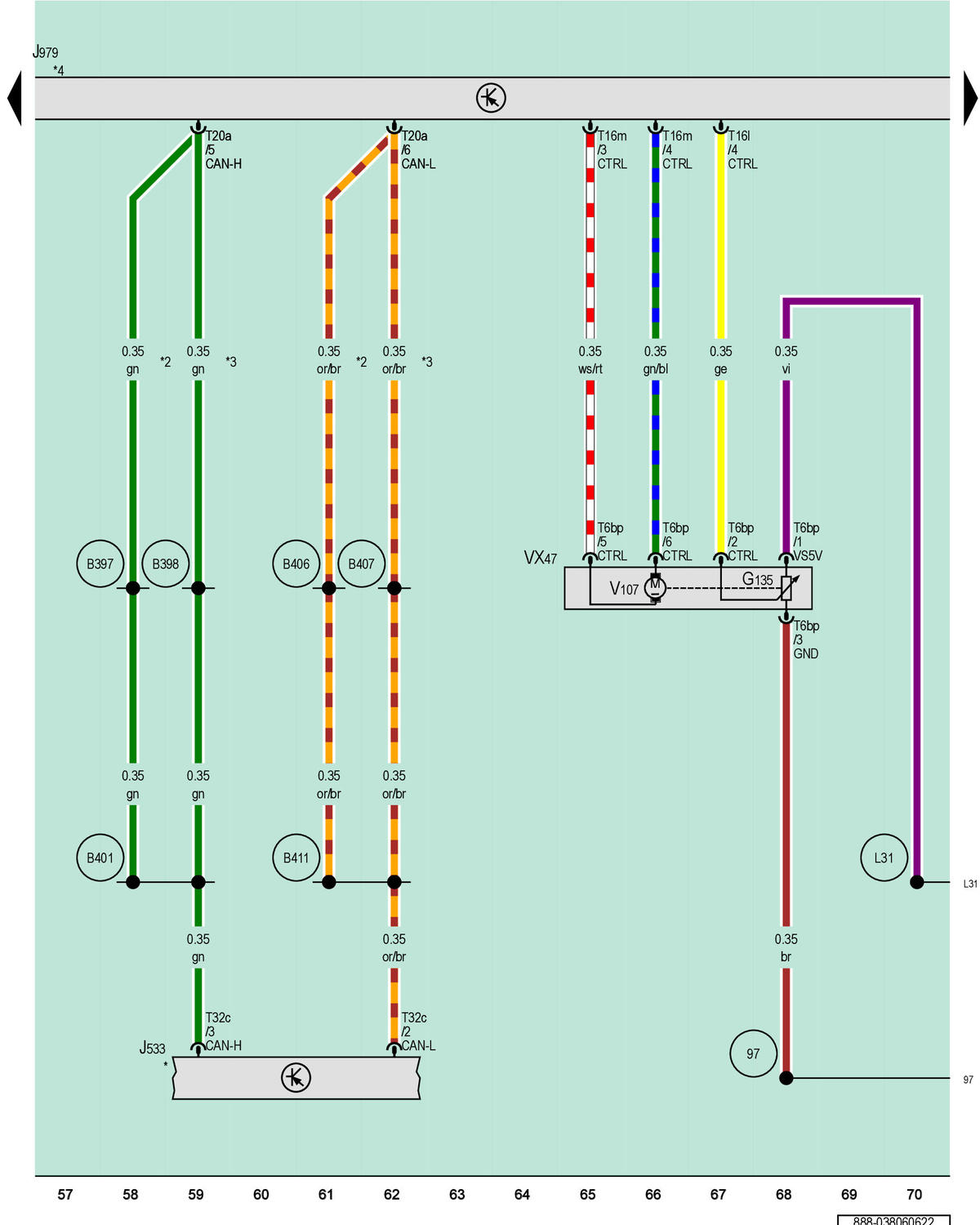

Data Bus On Board Diagnostic Interface, Heating And Air Conditioning Control Module, Defroster Door

Courtesy of AUDI OF AMERICA, LLC

G135

Defroster Door Motor Position Sensor

J533

Data Bus on Board Diagnostic Interface

J979

Heating and Air Conditioning Control Module

T6bp

6-Pin Connector, Blue

T16l

16-Pin Connector, Black

T16m

16-Pin Connector, Brown

T20a

20-Pin Connector, Black

T32c

32-Pin Connector, Black

VX47

Defroster Door

V107

Defroster Door Motor

97

Ground Connection 1 (in A/C Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B401

Comfort System CAN Bus High Connection 5 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B411

Comfort System CAN Bus Low Connection 6 (in Main Wiring Harness)

L31

Connection (5 Volt) (in A/C System Wiring Harness)

*

Refer to Applicable Wiring Diagram for Data Bus Networking

*2

For RHD Vehicles

*3

For LHD Vehicles

*4

Refer to the Applicable Heated Seats Wiring Diagram
