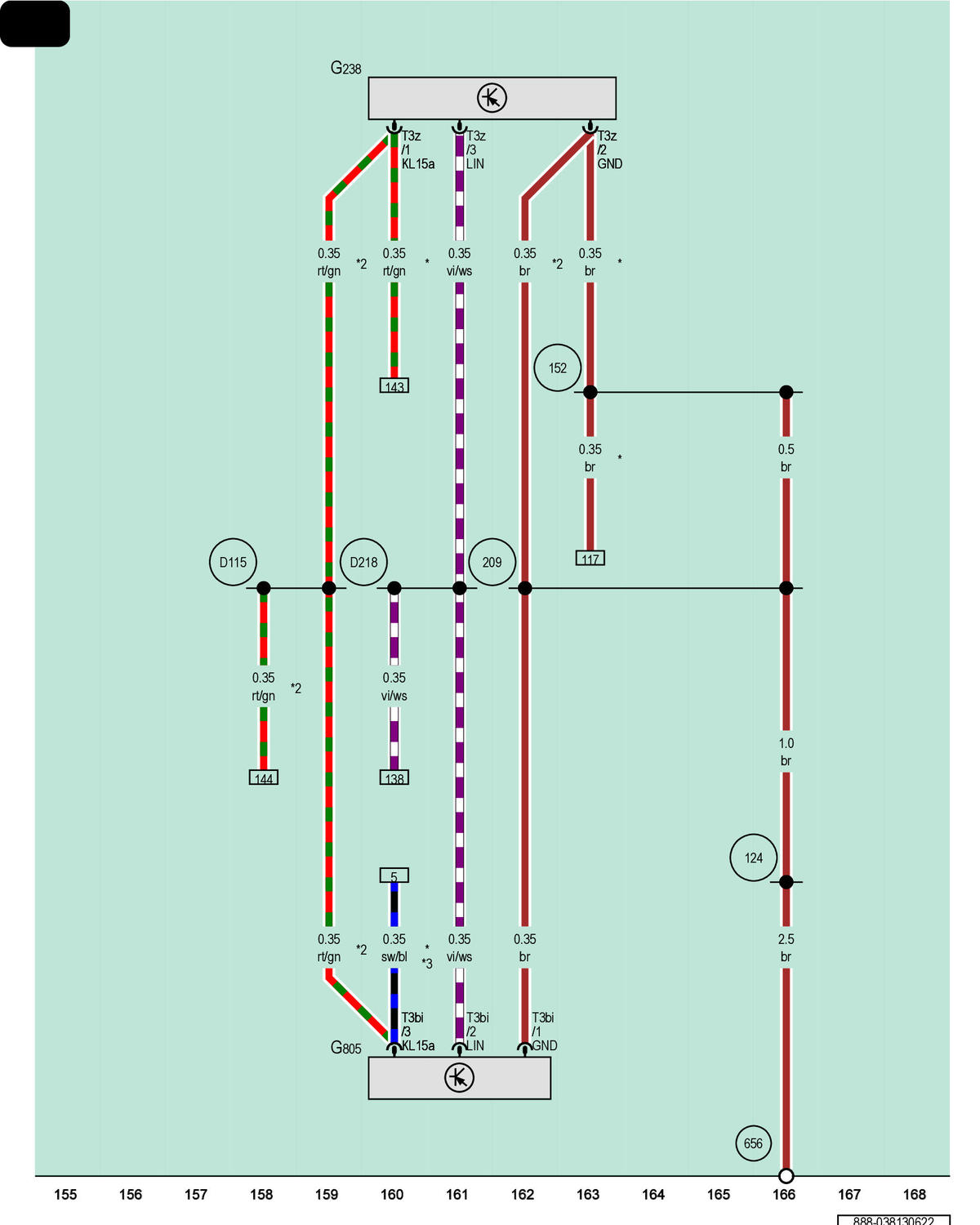

Air Quality Sensor, Refrigerant Circuit Pressure Sensor
G238
Air Quality Sensor
G805
Refrigerant Circuit Pressure Sensor
T3bi
3-Pin Connector, Black
T3z
3-Pin Connector, Brown
124
Ground Connection (in Right Engine/Motor Compartment Wiring Harness)
152
Ground Connection 2 (in Front Wiring Harness)
209
Ground Connection 6 (in Engine/Motor Compartment Wiring Harness)
656
Ground Connection on Right Headlamp
D115
Connection 13 (in Engine/Motor Compartment Wiring Harness)
D218
Connection 1 (LIN Bus) (in Engine/Motor Compartment Wiring Harness)
*
For Vehicles with Hybrid Drive
*2
For Vehicles Without Hybrid Drive
*3
Diameter Depends on Equipment
