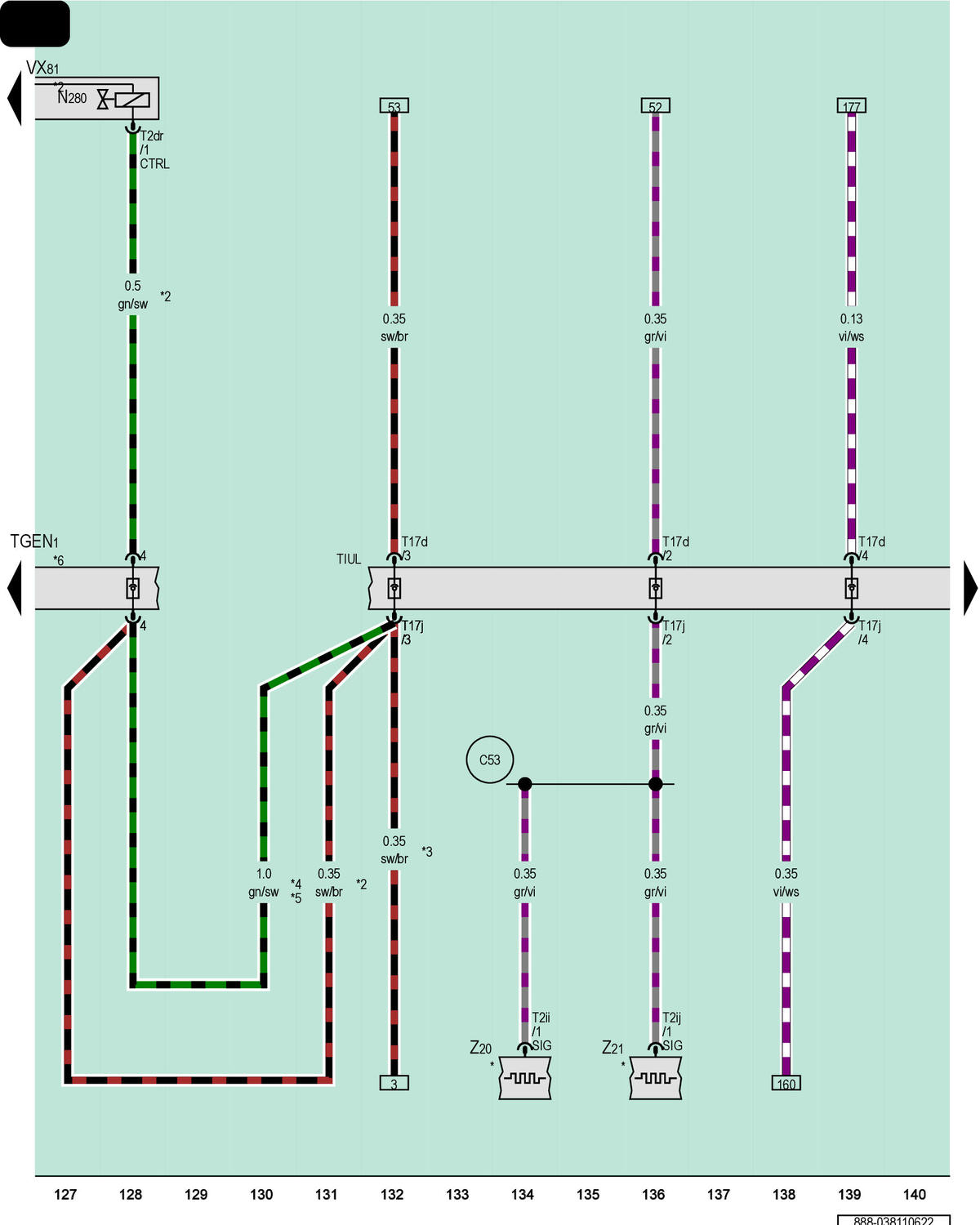

A/C Compressor, Left Washer Nozzle Heater, Right Washer Nozzle Heater

Courtesy of AUDI OF AMERICA, LLC

N280

A/C Compressor Regulator Valve

T2dr

2-Pin Connector, Black

T2ii

2-Pin Connector, Black

T2ij

2-Pin Connector, Black

T17d

17-Pin Connector, Red

T17j

17-Pin Connector, Red

TGEN1

Generator Coupling Point 1

TIUL

Coupling Point in Interior, Bottom Left

VX81

A/C Compressor

Z20

Left Washer Nozzle Heater

Z21

Right Washer Nozzle Heater

C53

Positive Connection (X) (in Heated Spray Nozzle Wiring Harness)

*

Refer to the Applicable Wiring Diagram for the Windshield Wiper/Washer System

*2

For Vehicles Without Hybrid Drive

*3

For Vehicles with Hybrid Drive

*4

From June 2021

*5

For Vehicles with 2.5L Gasoline Engine

*6

Refer to Applicable Engine Wiring Diagram
