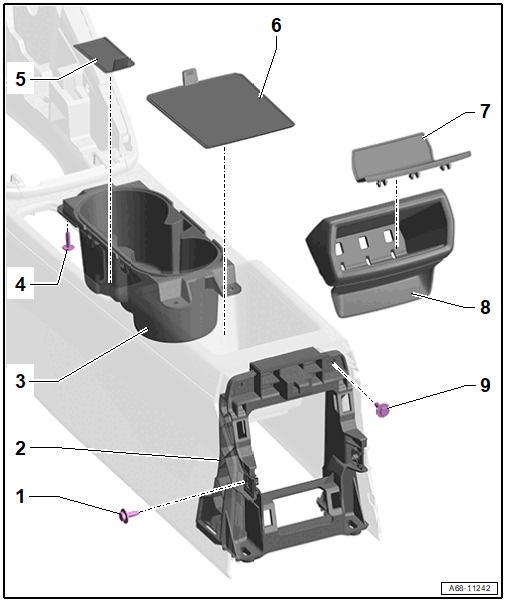

Overview - Center Console Attachments

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- 3 Nm
Rear Bracket
- Equipped on some models
- Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING
Cupholder
- Refer to CUPHOLDER, REMOVING AND INSTALLING
Bolt
- Quantity: 4
- 1.4 Nm
Storage Compartment Insert
Storage Compartment Insert
Storage Compartment Insert
Rear Storage Compartment
- Equipped on some models
- Refer to CENTER CONSOLE REAR STORAGE COMPARTMENT, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- 3 Nm
