Overview - Front Wheel Housing Liner

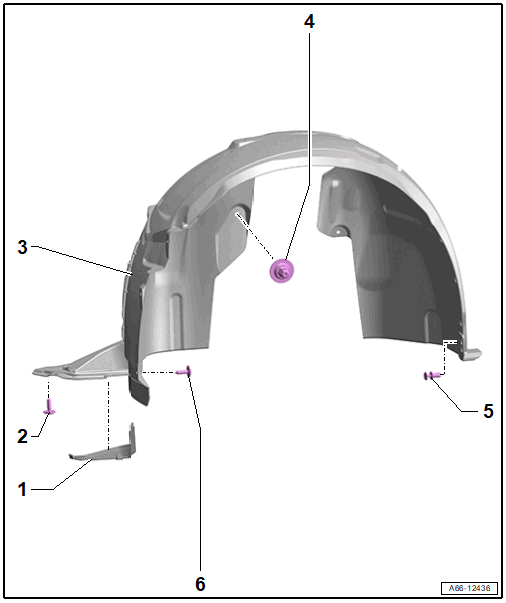

GWWA66-12436Courtesy of AUDI OF AMERICA, LLC
  1. End Panel
    • Wheel Housing Liner
    • Model versions
  2. Bolt
    • Quantity: 5
    • 2 Nm
  3. Wheel Housing Liner
    • Front
  4. Nut
    • 2 Nm
  5. Expanding Rivet
    • Quantity: 5
  6. Bolt
    • Quantity: 9
    • 2 Nm
