Overview - Noise Insulation

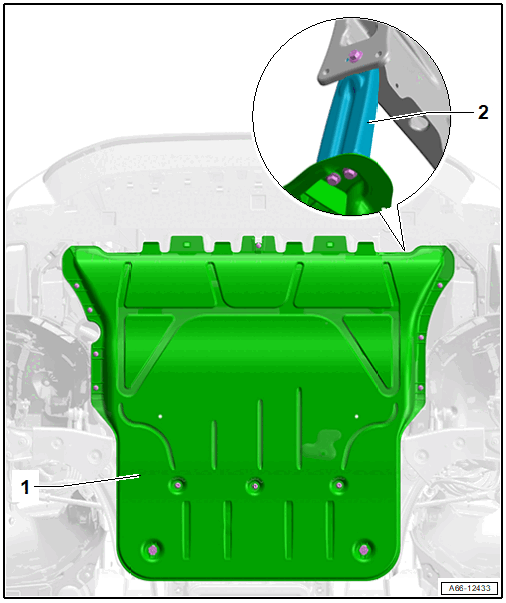

GWWA66-12433Courtesy of AUDI OF AMERICA, LLC
  1. Noise Insulation
    • Front
    • Different versions
    • Tightening Specifications
      • Bolts: 2 Nm
      • M8 Bolts: 6 Nm Replace after removing
      • Expanding rivet: 2 Nm
  2. Bracket
    • Impact Guard
    • Tightening Specifications
      • M8 Bolts: 20 Nm
