Overview - Steering Column Trim Panel

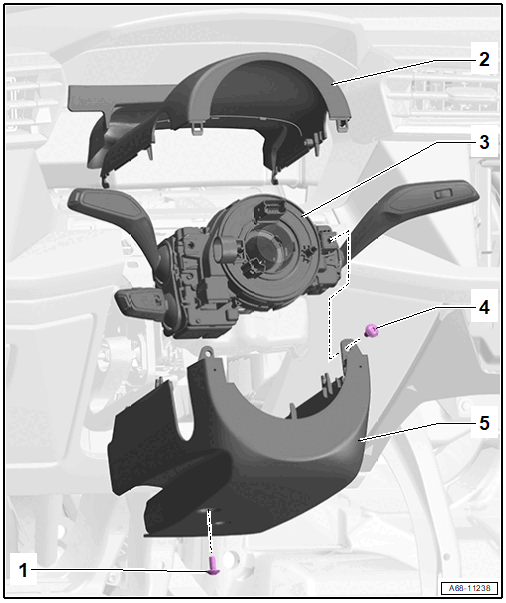

GWWA68-11238Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 2.5 Nm
  2. Upper Steering Column Trim Panel
  3. Steering Column Switch Module
    • Refer to appropriate Service Information .
  4. Bolt
    • Quantity: 2
    • 2.5 Nm
  5. Lower Steering Column Trim Panel
