Overview - Front Center Armrest

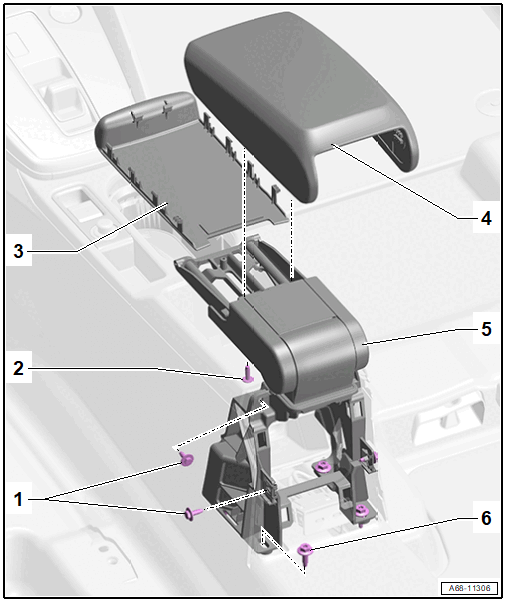

GWWA68-11306Courtesy of AUDI OF AMERICA, LLC
  1. Bolts
    • Quantity: 4
    • 3 Nm
  2. Bolt
    • Quantity: 2
    • 3 Nm
  3. Cover for Center Armrest Upper Section
  4. Center Armrest Upper Section
  5. Front Center Armrest
  6. Bolt
    • Quantity: 4
    • 8 Nm
