Front Center Armrest, Removing And Installing: Removing

-- Move the front seats all the way forward.

-- Remove the rear center console vent. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Unclip the wire and free it up.

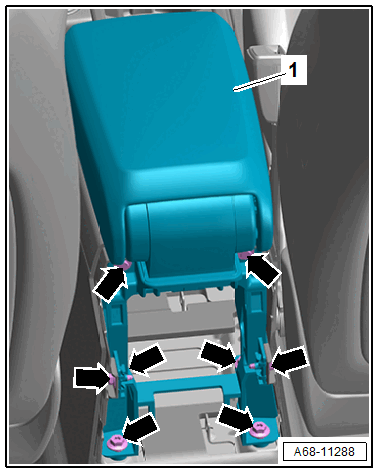

-- Remove the center armrest bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Fold down the center armrest slightly -1-.

-- Pull the center console sideways slightly on the side and disengage the center console.

-- Remove the center console toward the rear from the center console.
