Center Armrest Upper Section, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Fold the center armrest up.

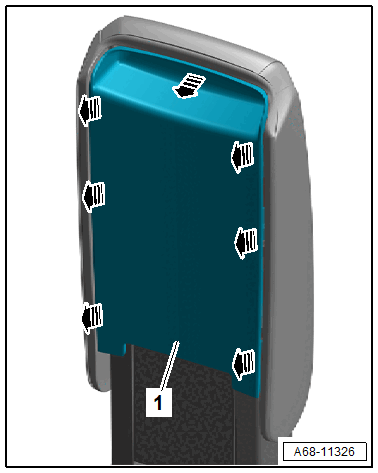

-- Unclip the cover -1- by hand or using the Wedge:T10383/1  from the center armrest -arrows-.

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

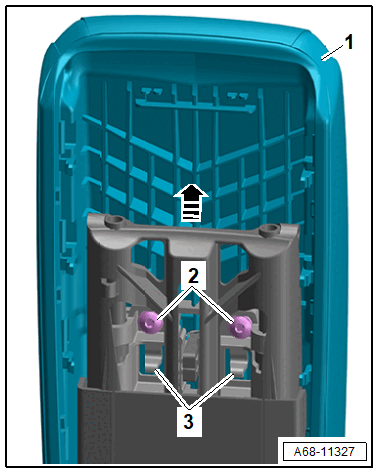

-- Carefully release the retainers -3- using a flat-head screwdriver and remove the upper section of the center armrest -1- upward -arrow-.
