Rear Center Console Vent, Removing And Installing: Removing
-- Move the front seats all the way forward.
TIP:

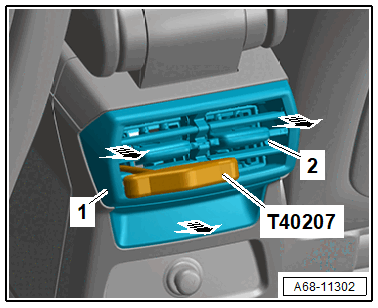

The vent has a hole -2- on both sides for attaching the Hook Tool:T40207 .
-- Carefully insert the Hook Tool:T40207 between the slats and hook it into the side of the vent.
-- Remove the vents -1- on both sides alternating from side to side -arrows-.
-- Unclip the vent at the bottom from the center console and remove from the installation opening.
-- Disconnect the connectors.
