Center Console Switch Mount, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

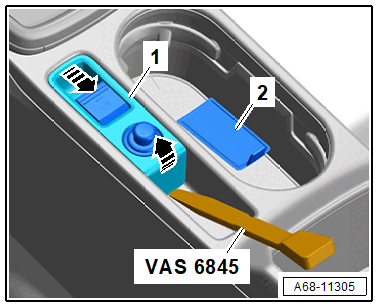

-- Remove the insert -2-.

-- Unclip the switch mount -1- using the scraper from Scraper Set:VAS 6845  from the center console and pull backward -arrows-.

-- Disconnect the connectors by pressing the release.
