Center Console Rear Trim, Removing And Installing: Removing

-- Move the front seats all the way forward.

-- Equipped on some models: remove the rear center console vent. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .

-- Equipped on some models: remove the rear center console storage compartment. Refer to CENTER CONSOLE REAR STORAGE COMPARTMENT, REMOVING AND INSTALLING .

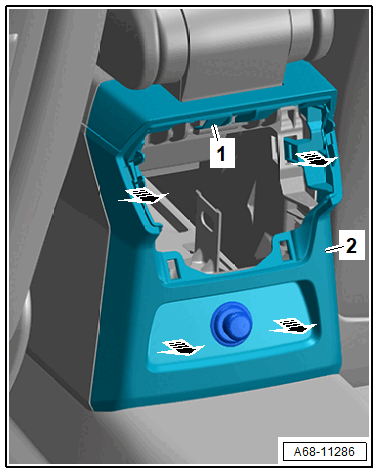

-- Release the tab -1- from the locking tab.

Courtesy of AUDI OF AMERICA, LLC

-- At the same time carefully pull the trim -2- by hand toward the rear -arrows- until the catches engage.

-- Disconnect the connectors by pressing the release.
