Remove Front Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Push aside the carpet in the area of the threaded connection and remove the nut -1-.

-- Remove the center console bracket -2-.

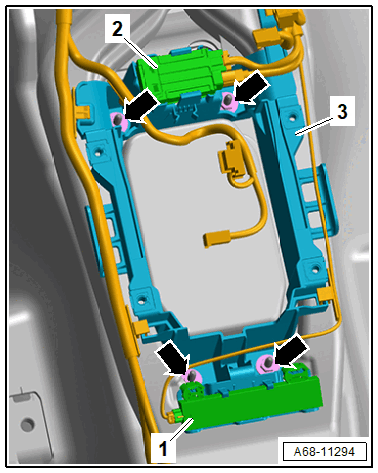

Remove the rear bracket for the center console

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Unclip the Access/Start System Antenna 1 in Vehicle Interior -R138- -1- from the bracket.

-- If installed, unclip the Near Field Communication Control Module 2 -J1170- -2- from the bracket.

-- Unclip the wiring harnesses on the bracket and free them up.

-- Remove the nuts -arrows- and remove bracket -3-.

Installing

Install in reverse order of removal.
