Center Console Bracket, Removing And Installing: Notes

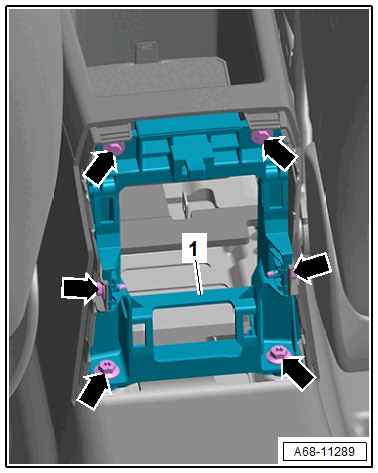

Remove the rear bracket for the center console

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Disengage the bracket -1- from the center console and remove rearward.
