CUPHOLDER, Removing And Installing: Removing

-- Remove the center console (refer to CENTER CONSOLE, REMOVING AND INSTALLING ) and place it on a soft surface.

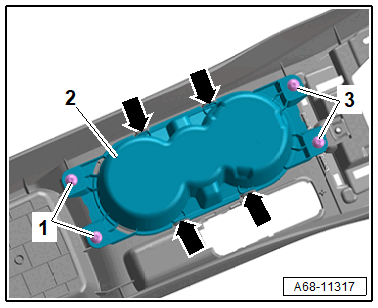

-- Remove the bolts -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows- and remove the cupholder -2-.
