Overview - Steering Column Switch Module

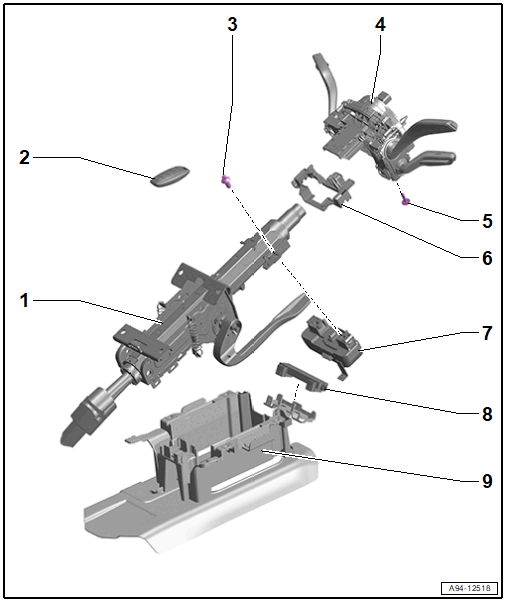

Fig 1: Exploded View Of Steering Column Switch Module

Courtesy of AUDI OF AMERICA, LLC

1. Steering Column
2. Ignition Key
3. Bolt
   • Quantity: 2
   • For steering lock housing (shear bolt)
4. Steering Column Switch Module
   • With the following integrated components
     • Windshield Wiper Switch -E-
     • Turn Signal Switch -E2-
     • Windshield Wiper Intermittent Mode Switch -E22-
     • Equipment version: Cruise Control Switch -E45-
     • Spiral Spring -F350-
     • Steering Column Electronics Control Module -J527-
   • The components cannot be replaced separately. If any component is faulty, replace the steering column switch module.
   • Removing and Installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .
5. Bolt
   • 1.1 Nm
6. Mount
   • For the steering column switch module
7. Electronic Steering Column Lock Control Module -J764-
   • Removing and Installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING
8. Access/Start System Antenna 1 in Vehicle Interior -R138-
   • Removing and Installing. Refer to Access/Start System Antenna 1 in Vehicle Interior -R138-, REMOVING AND INSTALLING .
9. Center Console Bracket
