Overview - SUBFRAME

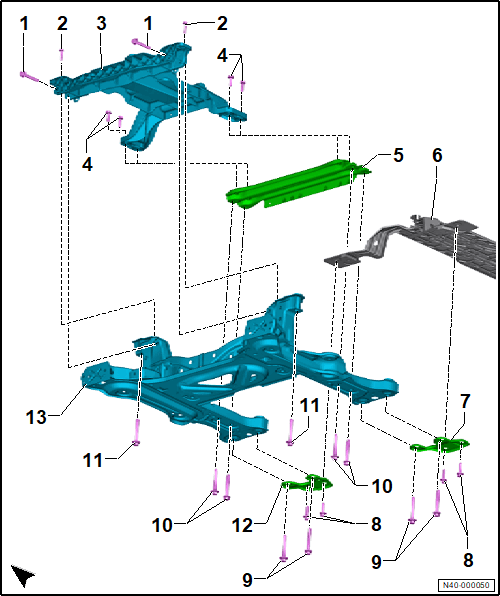

Fig 1: Exploded View Of Subframe

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- Replace after removing
- M 12 x 1.5 x 70
- 70 Nm + 180°
Bolt
- Quantity: 2
- Replace after removing
- M 8 x 25
- 20 Nm +45°
Bracket
Bolt
- Quantity: 4
- Replace after removing
- M 8 x 25
- 20 Nm +45°
Crossmember
Bracket
Support Plate
Bolt
- Quantity: 4
- Replace after removing
- M 10 x 45
- 50 Nm + 90°
Bolt
- Quantity: 4
- Replace after removing
- M 12 x 1.5 x 95
- 70 Nm + 180°
Bolt
- Quantity: 4
- Replace after removing
- M 12 x 1.5 x 90
- 70 Nm + 180°
Bolt
- Quantity: 2
- Replace after removing
- M 12 x 1.5 x 95
- 70 Nm + 180°
Support Plate
Subframe
- Refer to Subframe with Steering Gear, Removing and Installing .
- Refer to SUBFRAME, SECURING .
