Seat Occupant Detection Sensors G177/G178/G1010, Removing And Installing: Removing

-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Place the rear seat bench on a clean surface.

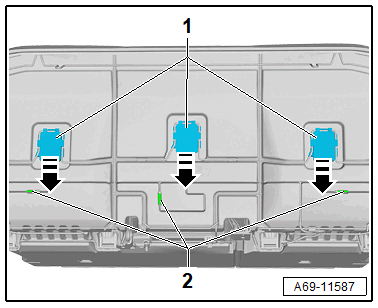

-- Release and disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the seat occupant detection sensor -1- from the seat frame and remove -direction of the arrow-.
