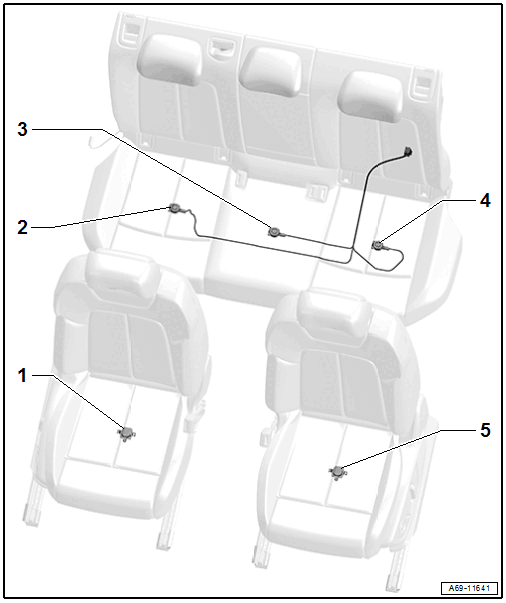

Overview - Passenger Occupant Detection Sensor

Courtesy of AUDI OF AMERICA, LLC

Right Front Seat Occupant Detection Sensor
- LHD: Front Passenger Seat Occupant Detection Sensor -G128-
- RHD: Front Driver Side Seat Occupant Detection Sensor -G1067-
- Refer to PASSENGER/DRIVER SIDE SEAT OCCUPANT DETECTION SENSOR G1067/G128, REMOVING AND INSTALLING .
Right Rear Seat Occupant Detection Sensor
- LHD: Passenger Side Rear Seat Occupant Detection Sensor - G178-
- RHD: Driver Side Rear Seat Occupant Detection Sensor - G177-
- Refer to SEAT OCCUPANT DETECTION SENSORS G177/G178/G1010, REMOVING AND INSTALLING .
Rear Center Seat Occupant Detection Sensor -G1010-
- Refer to SEAT OCCUPANT DETECTION SENSORS G177/G178/G1010, REMOVING AND INSTALLING .
Left Rear Seat Occupant Detection Sensor
- LHD: Driver Side Rear Seat Occupant Detection Sensor - G177-
- RHD: Passenger Side Rear Seat Occupant Detection Sensor - G178-
- Refer to SEAT OCCUPANT DETECTION SENSORS G177/G178/G1010, REMOVING AND INSTALLING .
Left Front Seat Occupant Detection Sensor
- LHD: Driver Side Seat Occupant Detection Sensor - G1067-
- RHD: Passenger Seat Occupant Detection Sensor - G128-
- Refer to PASSENGER/DRIVER SIDE SEAT OCCUPANT DETECTION SENSOR G1067/G128, REMOVING AND INSTALLING .
