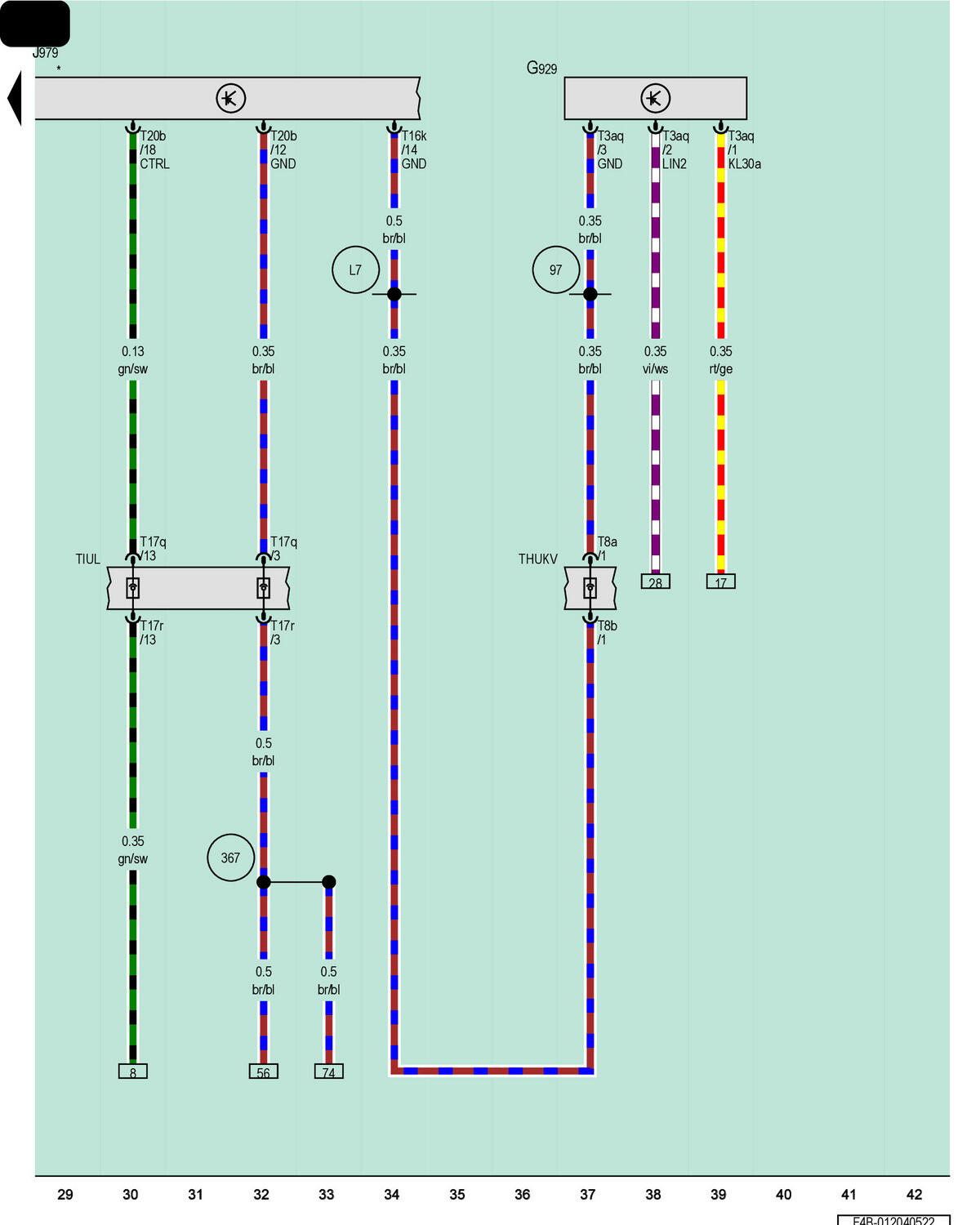

Vehicle Interior Carbon Dioxide Concentration Sensor, Heating And Air Conditioning Control Module

Courtesy of AUDI OF AMERICA, LLC

G929

Vehicle Interior Carbon Dioxide Concentration Sensor

J979

Heating and Air Conditioning Control Module

T3aq

3-Pin Connector, Blue

T8a

8-Pin Connector, Black

T8b

8-Pin Connector, Black

T16k

16-Pin Connector, Black

T17q

17-Pin Connector, Red

T17r

17-Pin Connector, Red

T20b

20-Pin Connector, Black

THUKV

Front Heating and Air Conditioning Coupling Point

TIUL

Coupling Point in Interior, Bottom Left

TIUR

Coupling Point in Interior, Bottom Right

97

Ground Connection 1 (in A/C Wiring Harness)

367

Ground Connection 2 (in Main Wiring Harness)

B698

LIN Bus Connection 3 (in Main Wiring Harness)

B842

LIN Bus Connection 8(in Main Wiring Harness)

L7

Connection 3 (in A/C Unit Wiring Harness)

*

Through June 2023

*2

From June 2023

*3

Refer to Applicable A/C System Wiring Diagram
