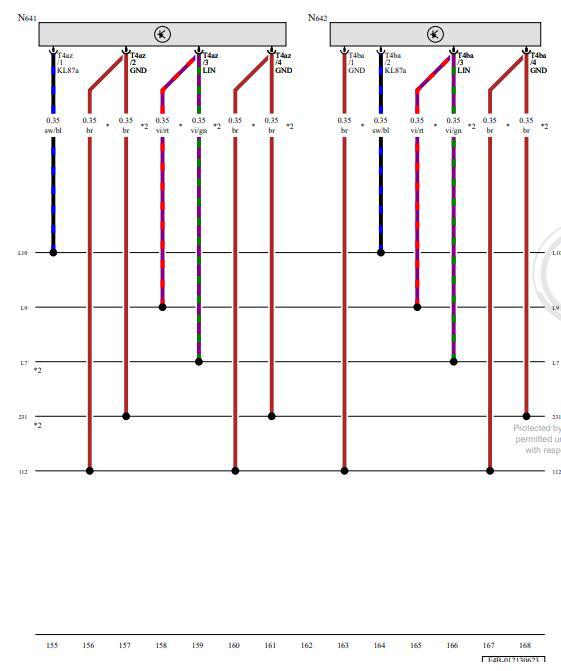

Refrigerant Shut-Off Valve 4, Refrigerant Shut-Off Valve 4
N641
Refrigerant Shut-Off Valve 3
N642
Refrigerant Shut-Off Valve 4
T4az
4-Pin Connector, Black
T4ba
4-Pin Connector, Black
112
Ground Connection 2 (in A/C Wiring Harness)
231
Ground Connection (in A/C System Radiator Fan Wiring Harness)
L7
Connection 3 (in A/C System Wiring Harness)
L9
Connection 1 (in A/C System Wiring Harness)
L10
Connection 2 (in A/C System Wiring Harness)
*
For Vehicles with UNECE Cyber Security
*2
For Vehicles Without UNECE Cyber Security
