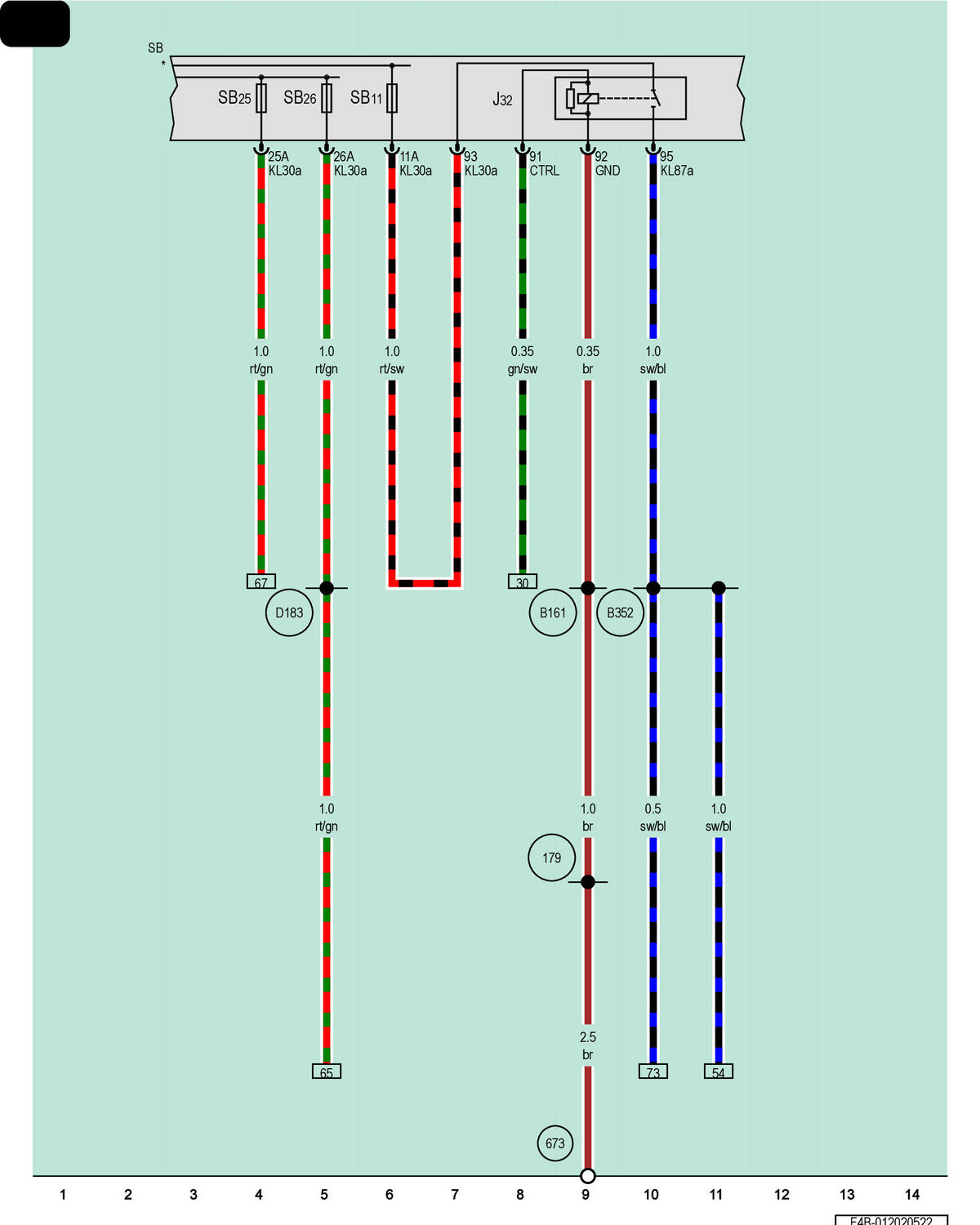

Fuse Panel B
J32
A/C Relay
SB
Fuse Panel B
SB11
Fuse 11 (On Fuse Panel B)
SB25
Fuse 25 (On Fuse Panel B)
SB26
Fuse 26 (On Fuse Panel B)
179
Ground Connection (in Left Headlamp Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
B161
Anti-Theft Alarm System Connection (in Interior Wiring Harness)
B352
Positive Connection 3 (87a) (in Main Wiring Harness)
D183
Connection 4 (87A) (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
*2
Through June 2023
*3
From June 2023
