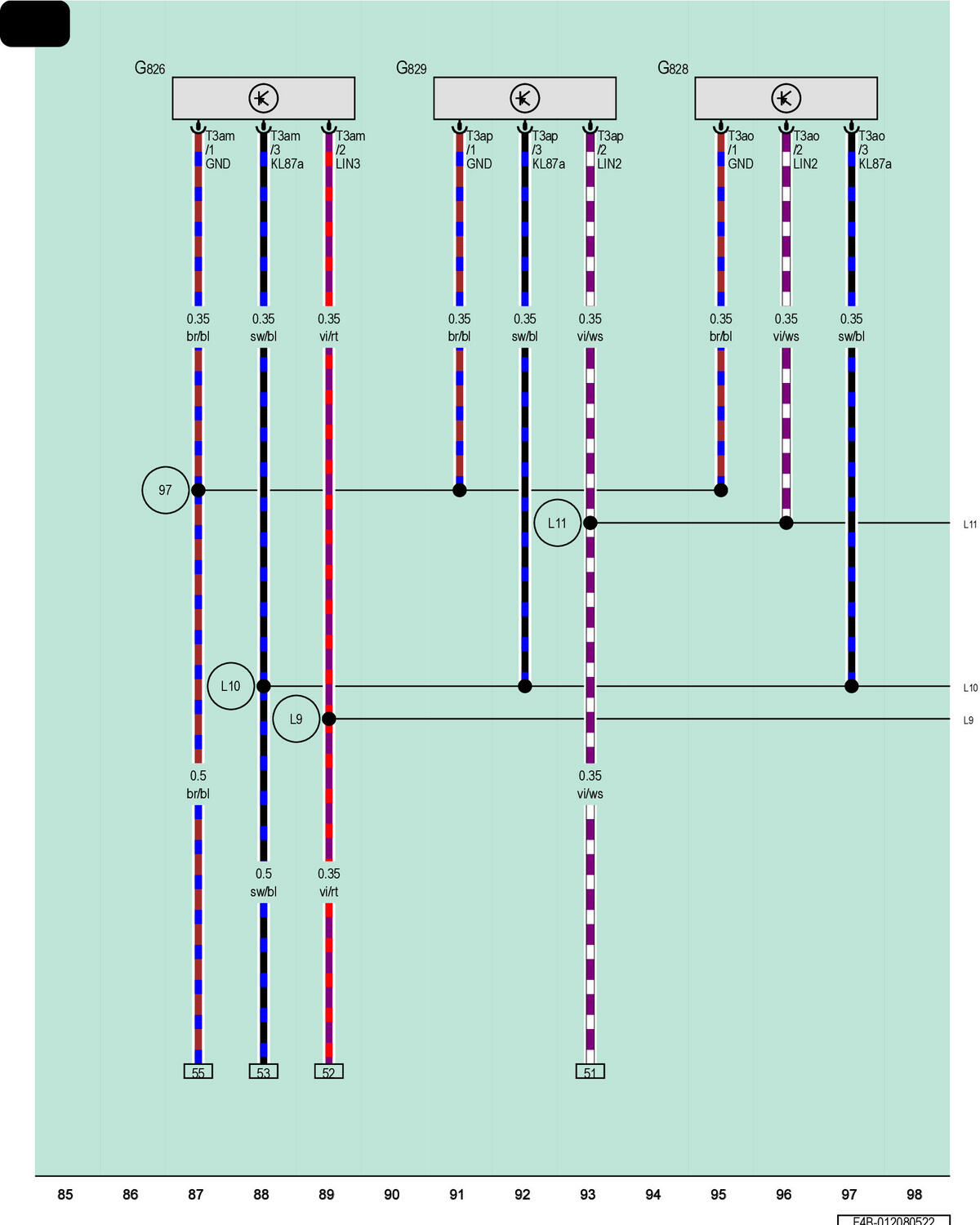

A/C Pressure/Temperature Sensor 2, A/C Pressure/Temperature Sensor 4, A/C Pressure/Temperature Sensor 5
G826
A/C Pressure/Temperature Sensor 2
G828
A/C Pressure/Temperature Sensor 4
G829
A/C Pressure/Temperature Sensor 5
T3am
3-Pin Connector, Gray
T3ao
3-Pin Connector, Brown
T3ap
3-Pin Connector, Gray
97
Ground Connection 1 (in A/C Wiring Harness)
L9
Connection 1 (in A/C System Wiring Harness)
L10
Connection 2 (in A/C System Wiring Harness)
L11
Connection 3 (in A/C System Wiring Harness)
*
For Vehicles with UNECE Cyber Security
*2
For Vehicles Without UNECE Cyber Security
