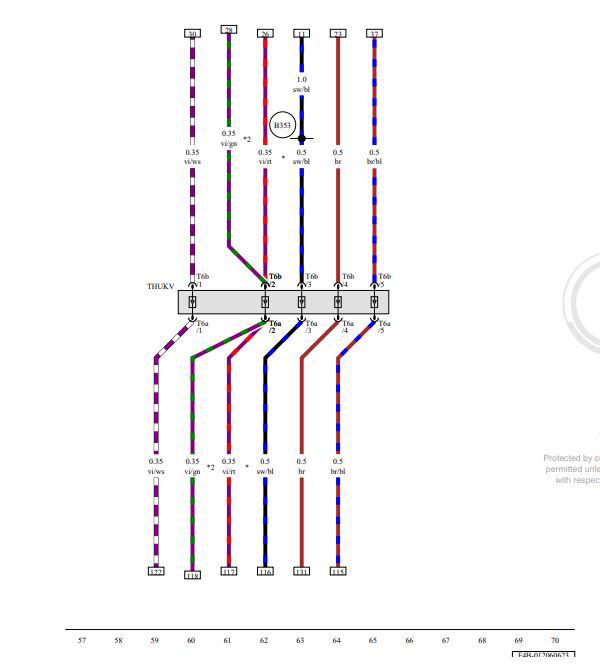

A/C PRESSURE/TEMPERATURE SENSOR, A/C PRESSURE/TEMPERATURE SENSOR 3 (2 Of 2)

Courtesy of AUDI OF AMERICA, LLC

T6a

6-Pin Connector, Black

T6b

6-Pin Connector, Black

THUKV

Front Heating and Air Conditioning Coupling Point

B353

Positive Connection 4 (87A) (in Main Wiring Harness)

*

For Vehicles Without UNECE Cyber Security

*2

For Vehicles with UNECE Cyber Security
