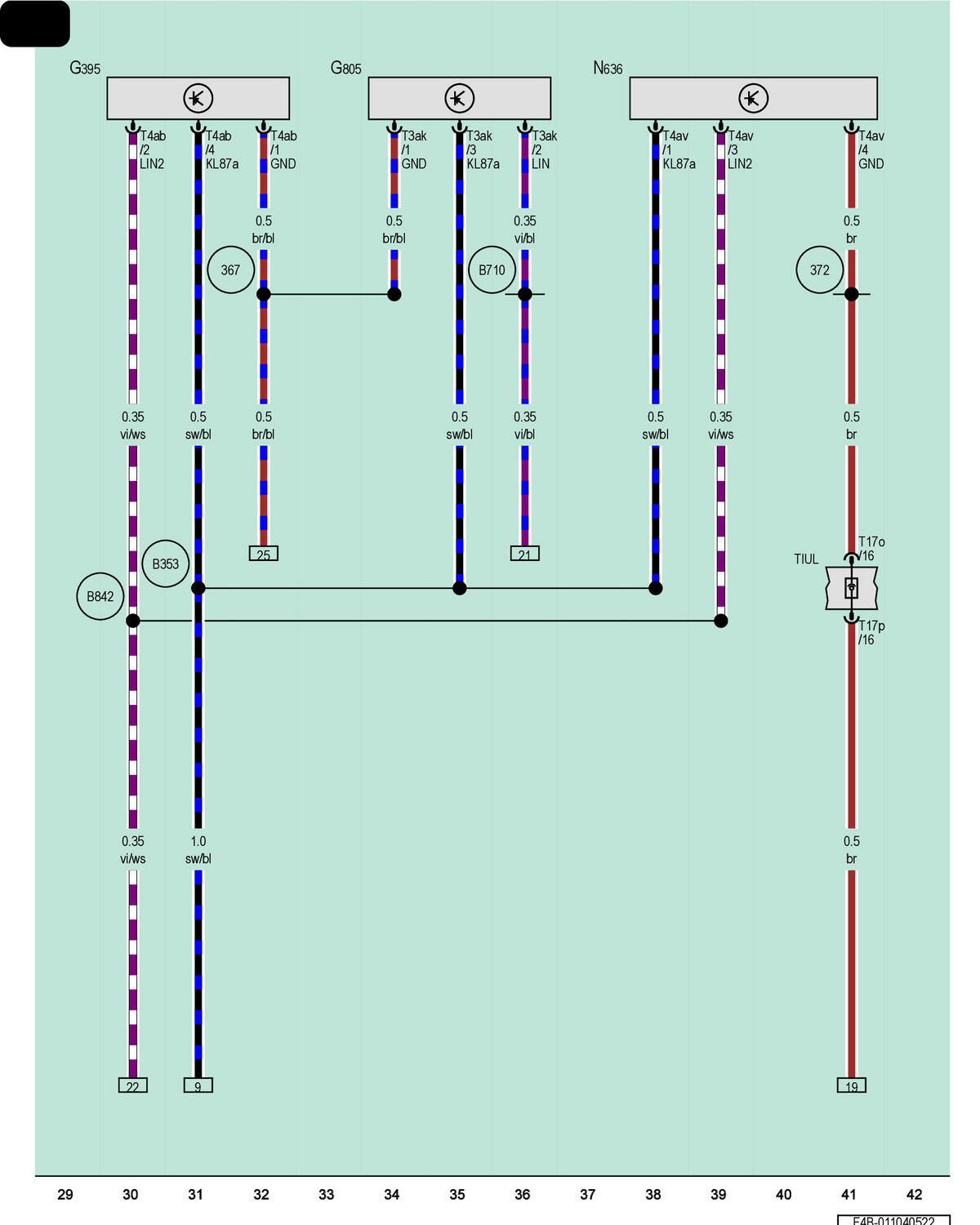

A/C Pressure/Temperature Sensor, Refrigerant Circuit Pressure Sensor, Refrigerant Expansion Valve 1

Courtesy of AUDI OF AMERICA, LLC

G395

A/C Pressure/Temperature Sensor

G805

Refrigerant Circuit Pressure Sensor

N636

Refrigerant Expansion Valve 1

T3ak

3-Pin Connector, Black

T4ab

4-Pin Connector, Brown

T4av

4-Pin Connector, Black

T17o

17-Pin Connector, Brown

T17p

17-Pin Connector, Brown

TIUL

Coupling Point in Interior, Bottom Left

367

Ground Connection 2 (in Main Wiring Harness)

372

Ground Connection 7 (in Main Wiring Harness)

B353

Positive Connection 4 (87a) (in Main Wiring Harness)

B710

LIN Bus Connection 5 (in Main Wiring Harness)

B842

LIN Bus Connection 8 (in Main Wiring Harness)
