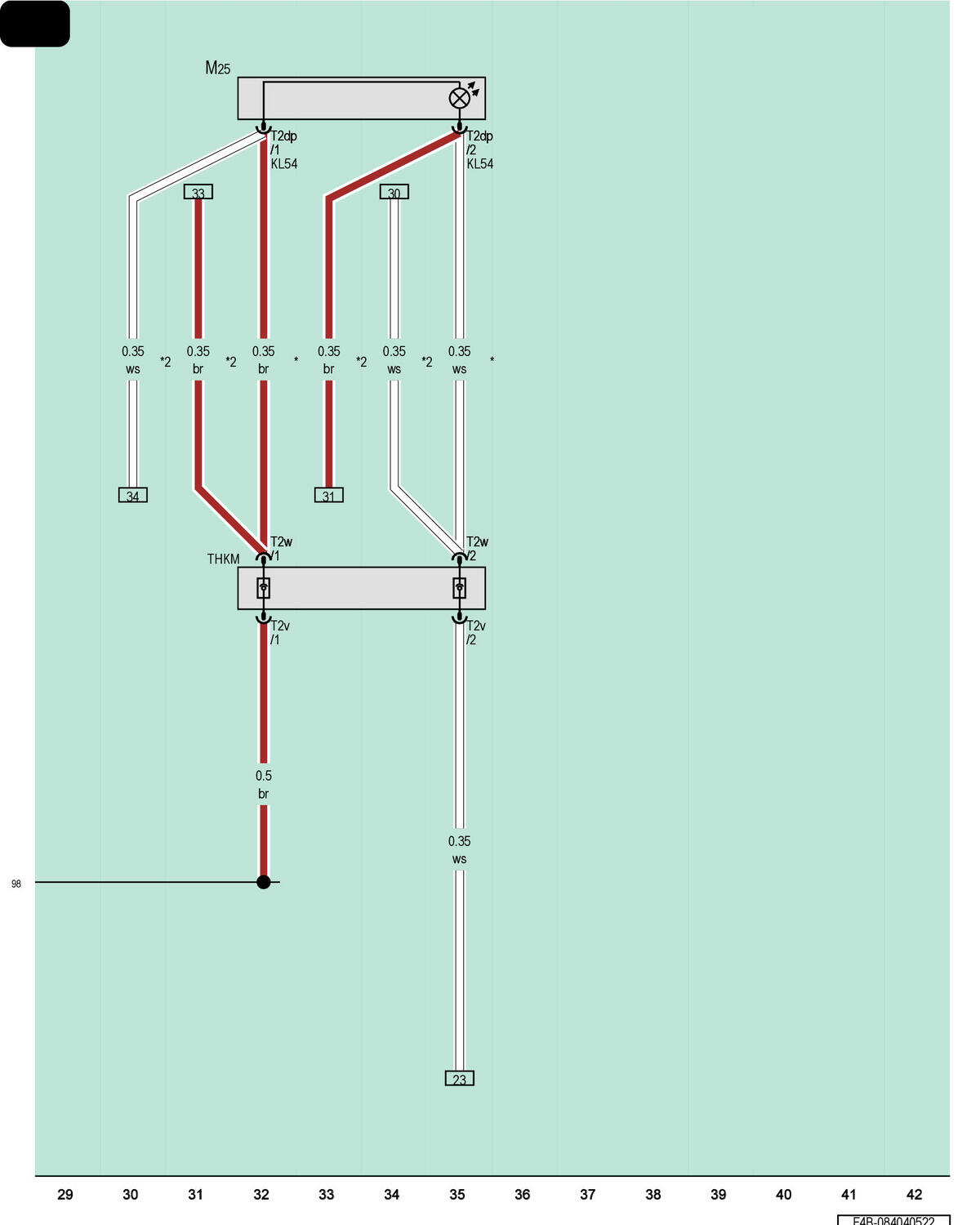

High-Mounted Brake Lamp Bulb

GWWF4B-084040522Courtesy of AUDI OF AMERICA, LLC

M25

High-Mounted Brake Lamp Bulb

T2dp

2-Pin Connector, Black

T2v

2-Pin Connector, Black

T2w

2-Pin Connector, Black

THKM

Coupling Point on Rear Lid, Center

98

Ground Connection (in Rear Lid Wiring Harness)

*

Sportback

*2

Hatchback
