High-Mounted Brake Lamp Bulb

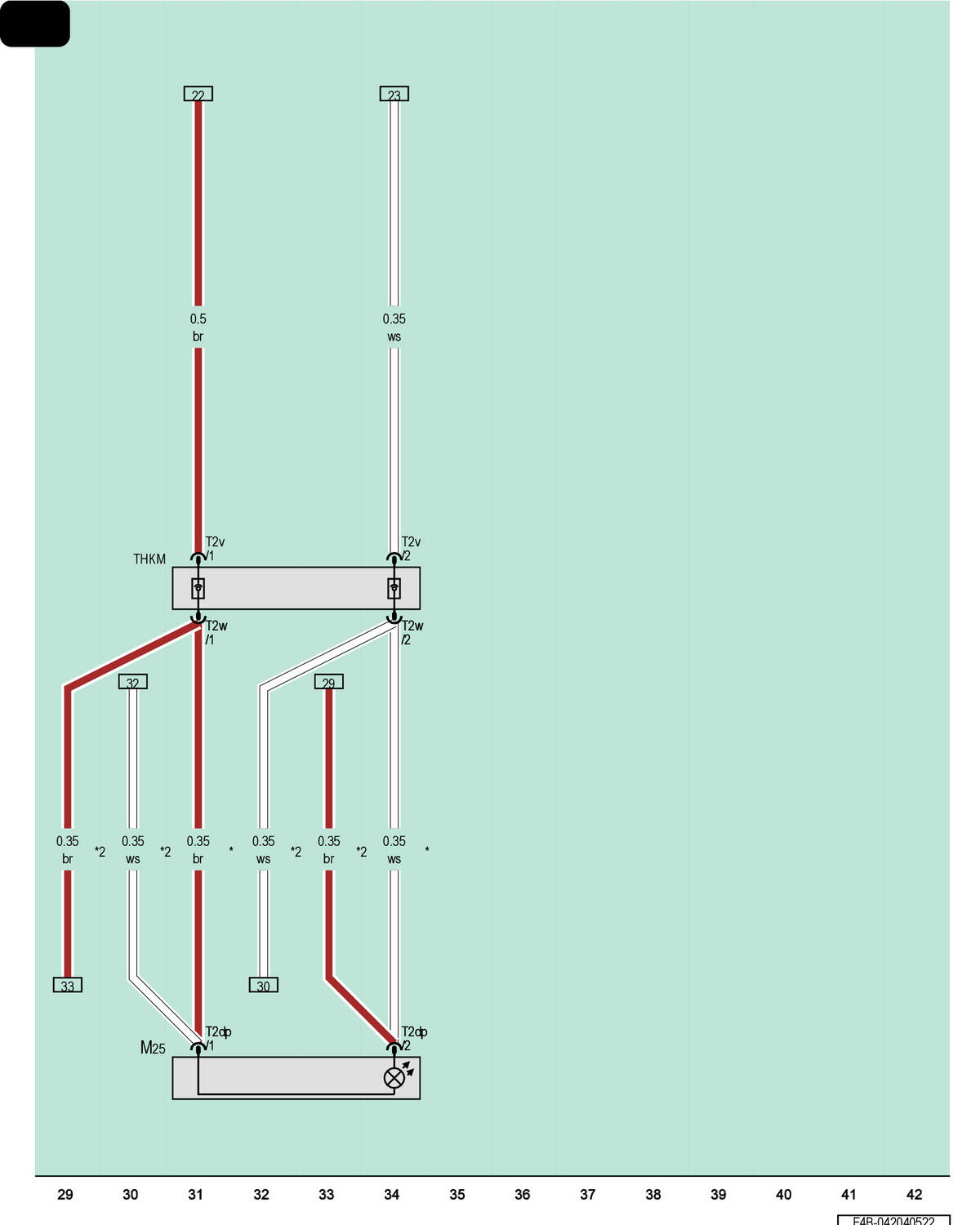

GWWF4B-042040522Courtesy of AUDI OF AMERICA, LLC

M25

High-Mounted Brake Lamp Bulb

T2dp

2-Pin Connector, Black

T2v

2-Pin Connector, Black

T2w

2-Pin Connector, Black

THKM

Coupling Point on Rear Lid, Center

*

Sportback

*2

Hatchback
