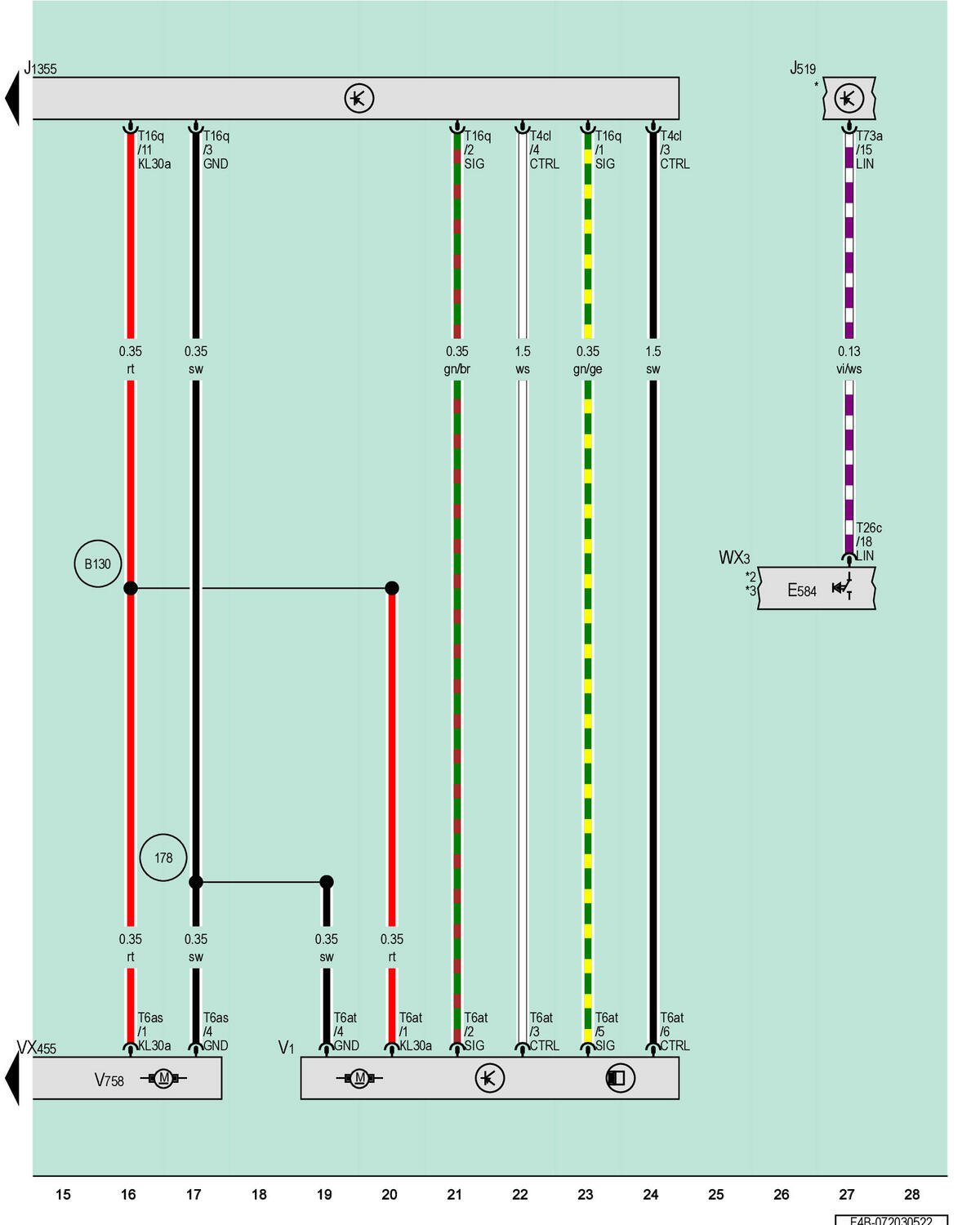

Vehicle Electrical System Control Module, Roof System Control Module, Sunroof Motor, Sun Shade Drive Unit, Front Roof Module
E584
Roof Shade Button 1
J519
Vehicle Electrical System Control Module
J1355
Roof System Control Module
T4cl
4-Pin Connector, Black
T6as
6-Pin Connector, Black
T6at
6-Pin Connector, Black
T16q
16-Pin Connector, Black
T26c
26-Pin Connector, Black
T73a
73-Pin Connector, Black
V1
Sunroof Motor
VX455
Sun Shade Drive Unit
V758
Sun Shade Motor
WX3
Front Roof Module
178
Ground Connection (in Sunroof Wiring Harness)
B130
Sunroof Connection (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable Wiring Diagram for Interior Lamps
*3
Refer to the Applicable Interior Rearview Mirror Wiring Diagram
