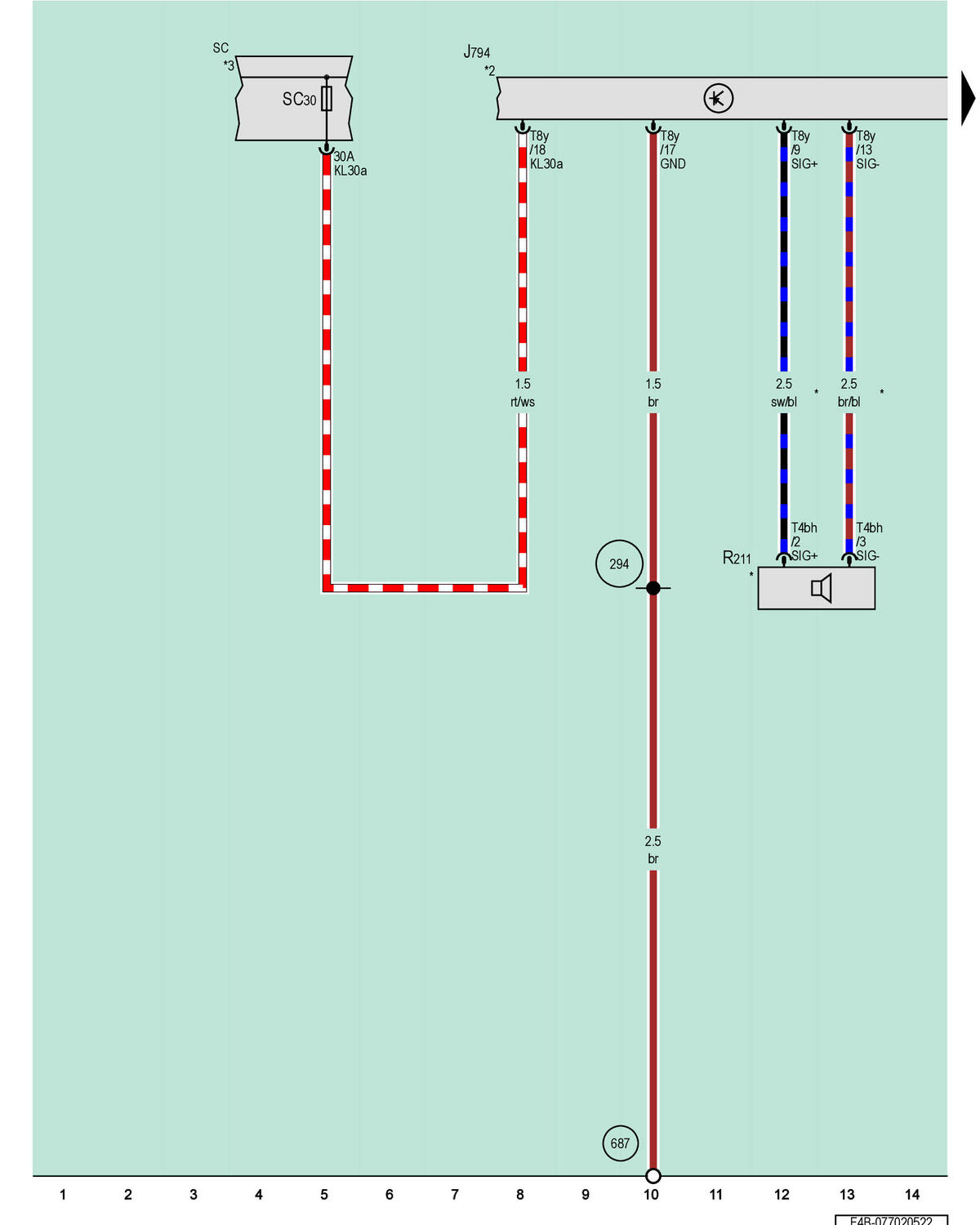

Information Electronics Control Module 1, Subwoofer, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R211

Subwoofer

SC

Fuse Panel C

SC30

Fuse 30 (On Fuse Panel C)

T4bh

4-Pin Connector, Black

T8y

8-Pin Connector, Black

294

Ground Connection 9 (in Interior Wiring Harness)

687

Ground Connection 1 on Center Tunnel

*

For Vehicles with Audi Sound System

*2

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
