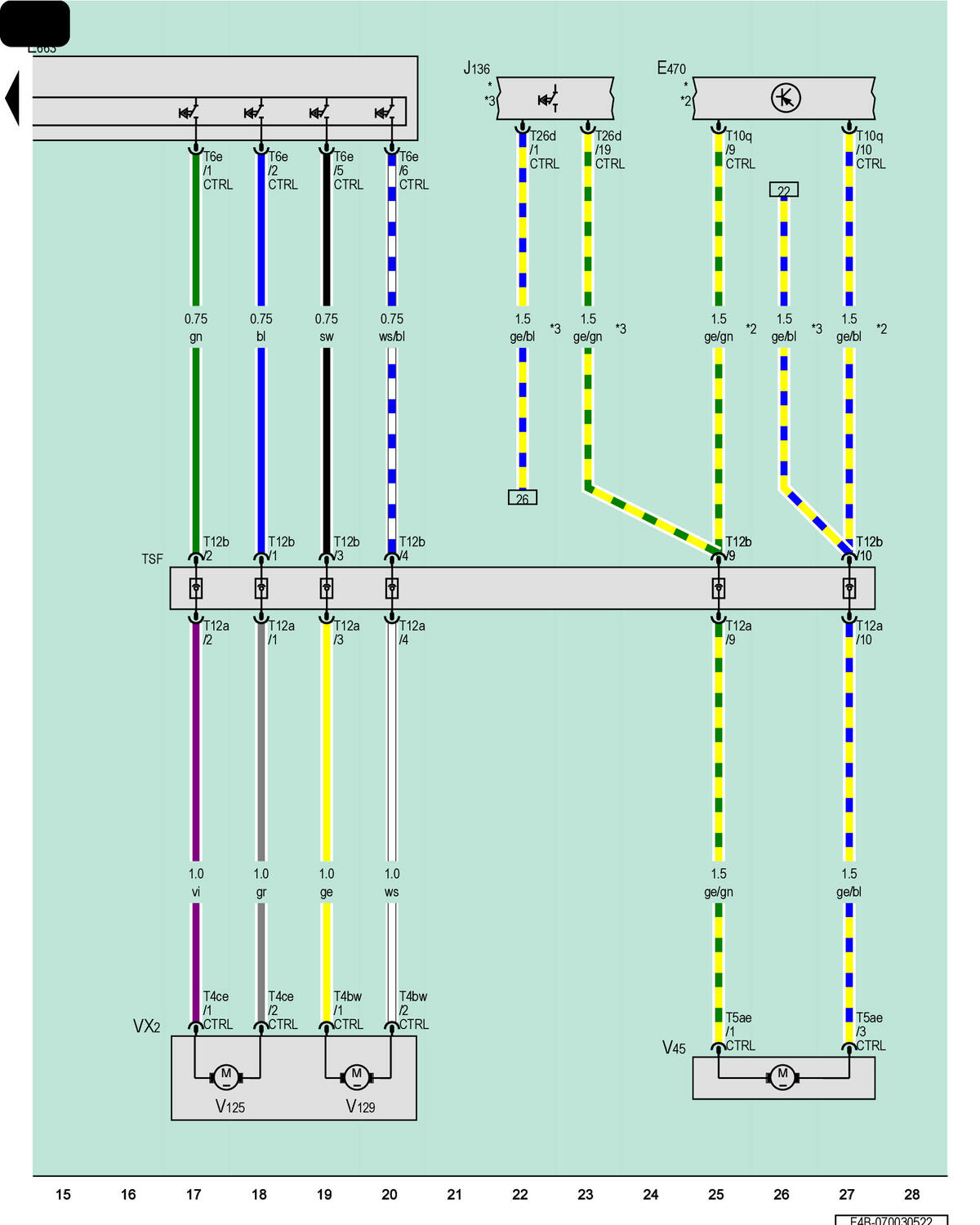

Driver Seat Adjustment Control Head, Driver Seat Switch Module, Memory Seat/Steering Column Adjustment Control Module, Driver Seat Lumbar Support, Driver Backrest Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E470

Driver Seat Adjustment Control Head

E663

Driver Seat Switch Module

J136

Memory Seat/Steering Column Adjustment Control Module

T4bw

4-Pin Connector, Black

T4ce

4-Pin Connector, Black

T5ae

5-Pin Connector, Brown

T6e

6-Pin Connector, Black

T10q

10-Pin Connector, Black

T12a

12-Pin Connector, Black

T12b

12-Pin Connector, Black

T26d

26-Pin Connector, Blue

TSF

Driver Seat Backrest Coupling Point

VX2

Driver Seat Lumbar Support

V45

Driver Backrest Adjustment Motor

V125

Driver Seat Lumbar Support Curvature Adjustment Motor

V129

Driver Seat Lumbar Support Height Adjustment Motor

*

Refer to Applicable Wiring Diagram for the Driver Seat

*2

Driver Seat Without Memory Function

*3

Driver Memory Seat
