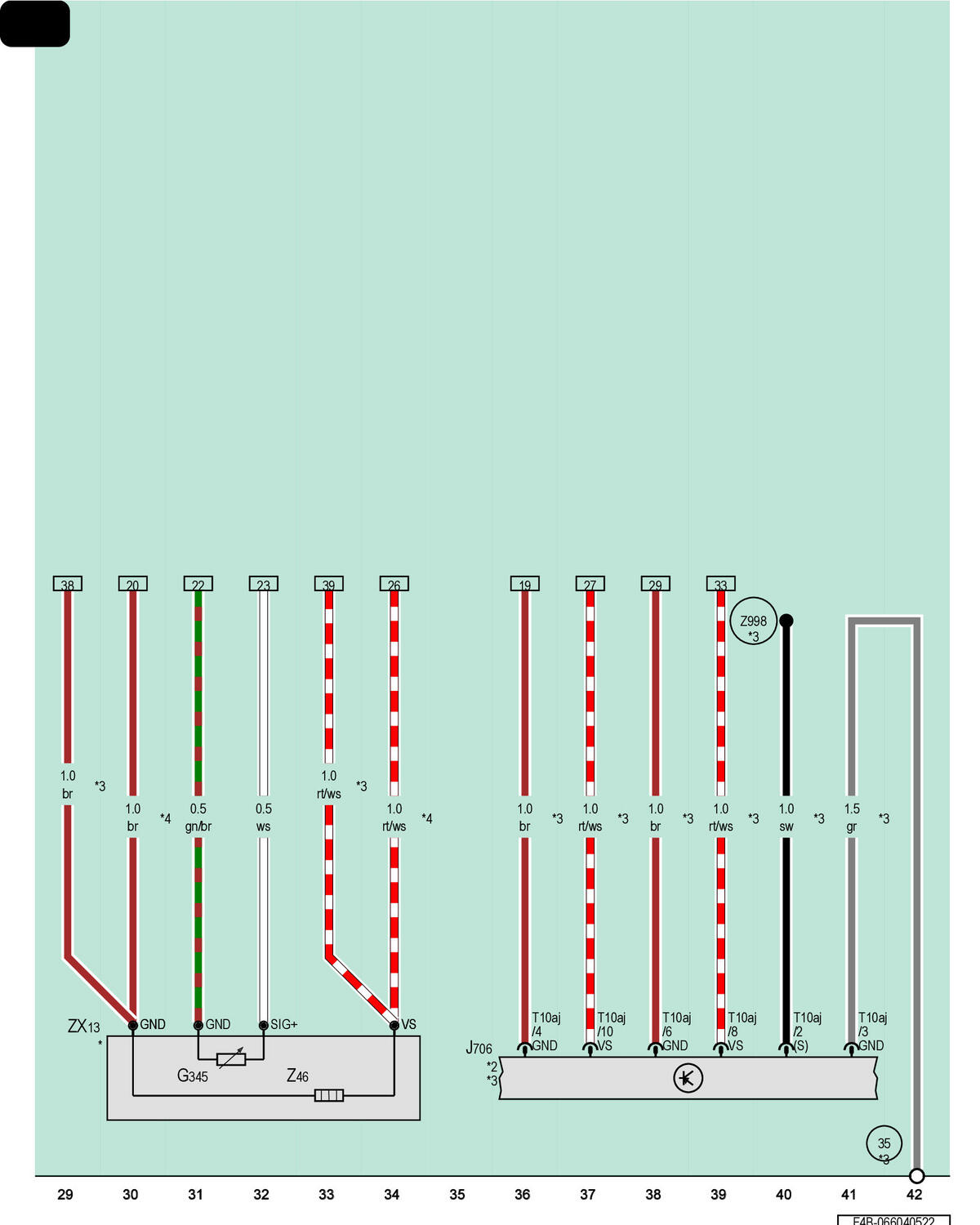

Seat Occupant Detection System Control Module, Right Front Seat Heater

Courtesy of AUDI OF AMERICA, LLC

G345

Right Front Seat Temperature Sensor

J706

Seat Occupant Detection System Control Module

T10aj

10-Pin Connector, Black

ZX13

Right Front Seat Heater

Z46

Right Front Seat Heating Element

35

Ground Connection Under Front Passenger Seat

Z998

Cable Shield

*

Pre-Wired Component

*2

Refer to Applicable Airbag Wiring Diagram

*3

For Vehicles with US Equipment

*4

For Vehicles Without US Equipment
