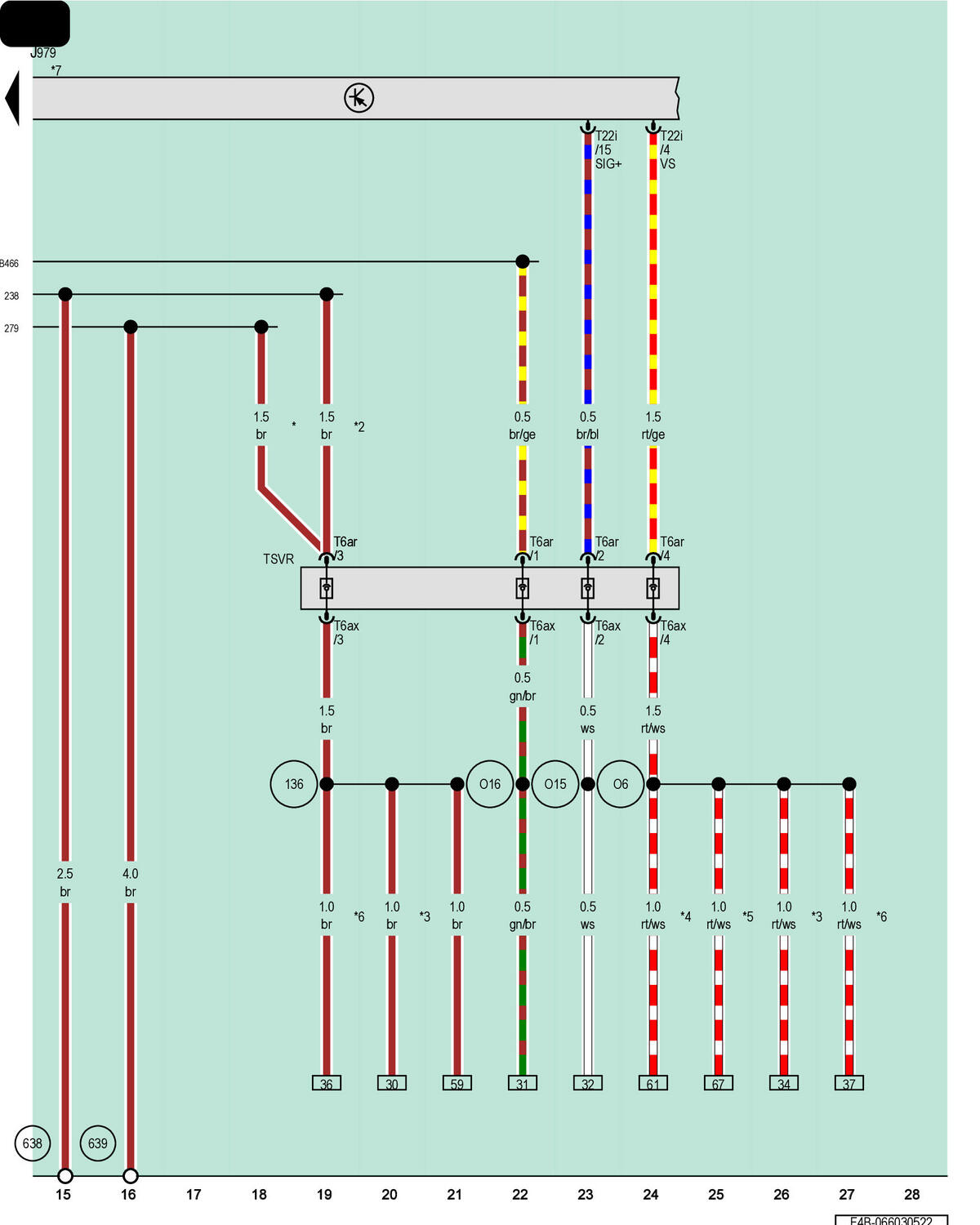

Heating And Air Conditioning Control Module
J979
Heating and Air Conditioning Control Module
T6ar
6-Pin Connector, Green
T6ax
6-Pin Connector, Green
T22i
22-Pin Connector, Black
TSVR
Right Front Seat Coupling Station
136
Ground Connection 2 (in Heated Seats Wiring Harness)
238
Ground Connection 1 (in Interior Wiring Harness)
279
Ground Connection 5 (in Interior Wiring Harness)
638
Ground Connection on Right A-Pillar
639
Ground Connection on Left A-Pillar
B466
Connection 2 (in Main Wiring Harness)
O6
Connection 2 (15a) in Heated Seats Wiring Harness
O15
Connection 4 (in Heated Seats Wiring Harness)
O16
Connection 5 (in Heated Seats Wiring Harness)
*
For RHD Vehicles
*2
For LHD Vehicles
*3
For Vehicles Without US Equipment
*4
For Vehicles Without Seat Depth Adjuster
*5
For Vehicles with Seat Depth Adjustment
*6
For Vehicles with US Equipment
*7
Refer to Applicable Windshield Defogger Wiring Diagram
